Supermicro SYS-620U-TNR 2U Rackmount DP Ultra SuperServer

  • Key Features/Applications: Virtualization, Cloud Computing, Software Defined Storage, 5G/Telco, HPC, High End Enterprise, Application Tier Service Provider
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5" Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 12TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU
SYS-620U-TNR

* Required Fields

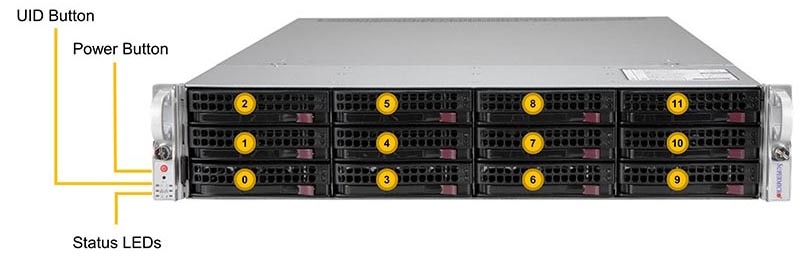

SYS-620U-TNR-Front-Description

The 3rd Generation Intel® Xeon™ Scalable Processors

Supermicro X12 Ultra SuperServers supports the latest 3rd generation Intel® Xeon™ Scalable processors, up to 8TB DDR4-3200MHz memory in 32 DIMMs slots, and 12 direct attached 3.5" hybrid storage drives with the ability to mix between 12x Gen 4 NVMe, SAS or SATA in any tray without any speed loss or limitations. It is perfect for mission-critical enterprise workloads. Whether you're running General Purpose, Cloud Computing, or Software Defined Storage, you can experience the highest performance and serviceability with the Supermicro SYS-620U-TNR.

Two CPUs in a Dual Socket Server to Catapult Performance

With support for a new class of big, affordable memory - Intel Optane DC Persistent Memory. The Intel® UltraPath Interconnect (UPI) and Cross Bar technologies provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency.

SYS-620U-TNR rear description

Flexible Networking Options

In terms of networking options, the SYS-620U-TNR has dual 10GbE RJ45 ports + dual 10GbE SFP+ ports, providing users with flexible options to fit their needs. The server also has 8 PCI-E 4.0 slots in the rear side, including 1 x PCI-E x16 (FH, 10.5"L), 2 x PCI-E 4.0 x8, 1 x PCI-E 4.0 x16 (LP), and 4 x PCI-E 4.0 x8 (FH, 10.5"L).

With unparalleled performance, this Ultra SuperServer® is one of the world's most powerful, balanced, and green computing servers.

More Information
CPU3rd Gen Intel® Xeon® Scalable
Specification
