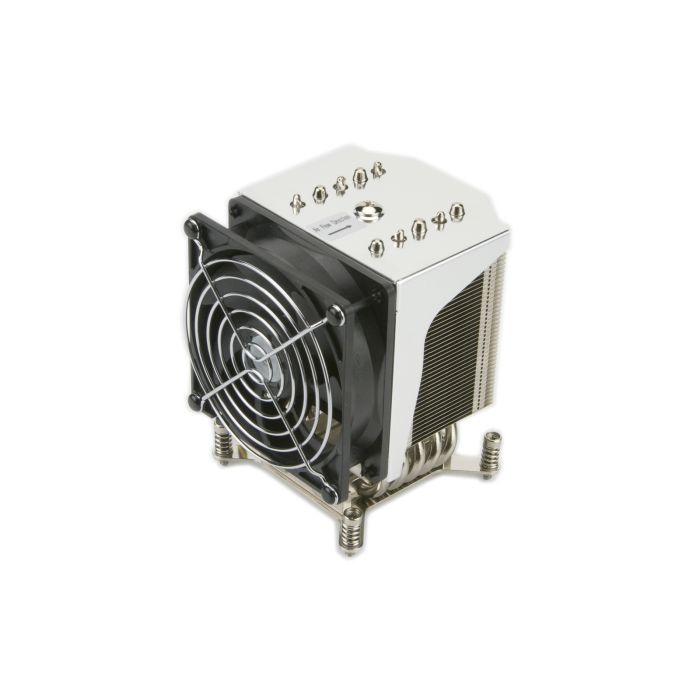

Supermicro 4U Active CPU Heat Sink Socket LGA2011 Square and Narrow ILMs (SNK-P0050AP4)

Be the first to review this product

4U Active CPU Heat Sink
Intel Xeon Processor E5-1600 and E5-2600 Series
Socket LGA2011 Square and Narrow ILMs
Supermicro Certified

Koop Meer, Bespaar Meer

Offerte aanvragen voor volumekorting

SKU

SNK-P0050AP4

LAAT ME WETEN WANNEER DIT PRODUCT OP VOORRAAD IS

Aantal

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IS THIS VALIDATED FOR MY SYSTEM OR MOTHERBOARD?

System

SKU #:

Check if your server system is validated with this product
•System: Enter a server part number (e.g. SYS-1027B-MTF)

Description

This CPU fan heat sink is designed for Supermicro X9 and X10 generations 4U UP and DP servers and workstations equipped with Intel Xeon E5-1600 or E5-2600 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

Detailed Specification

More Information
Manufacturer	Supermicro
Server Form Factor	4U
Cooling Type	Active
CPU Configuration	Uni Processor, Dual Processor
Supported CPU SKU	Intel® Xeon® Processor E5-1600, E5-1600 v2, and E5-1600 v3 Series, Intel® Xeon® Processor E5-2600, E5-2600 v2, E5-2600 v3, and E5-2600 v4 Series
Supported CPU Socket	FCLGA2011 (Square and Narrow ILMs)
Supported CPU TDP	Up to 165 Watts
Attached Cooling Fan	Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 3,800 RPM Acoustic Noise: 38.0 dB(A) at Rated Speed Dimensions: 92L x 92H x 25W (mm) Position: Front Side MTBF/MTTF: 108,798 Hours
Validated Systems	SYS-7047A-73, SYS-7047A-T, SYS-7047GR-TPRF, SYS-7047GR-TRF, SYS-7047R-TXRF, SYS-7048A-T, SYS-7048GR-TR
Search Terms	cpu fan
Warranty	1 year warranty
Product Environmental Compliance	RoHS and REACH compliant, details available upon request
