Supermicro IOT/Embedded System (SYS-E100-9S)

  • Embedded Server
  • CPU: Single 7th/6th Gen Intel® Core™
  • Chassis: 3.5" SBC / 1 Node
  • Drive: 1 M.2 B-Key
  • RAM: 2 DDR4 DIMM Slots
  • Network Ports: 2 1GbE LAN Ports
  • Ships Within 3-5 Business Days

Buy More, Save More

In stock

SKU
SYS-E100-9S

* Required Fields

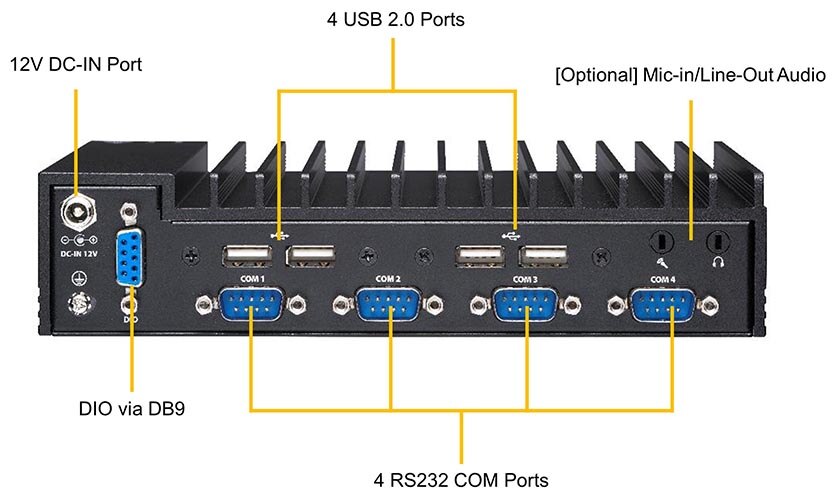

E100-9S-Back-Description
Despite its compact size, SYS-E100-9S is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 7.6 x 1.7 x 5.9 inches and weighing slightly over 2.6lbs. This particular IoT/embedded system is optimized for IoT gateways, smart retail/kiosks, environmental monitoring, and more.

SYS-E100-9S supports Intel’s 7th generation i7-7600U dual-core processor, up to 32GB DDR4 non-ECC SO-DIMM, and up to 1 x M.2 B-Key 2280, and 1 full size mini-PCI-E. In addition, this system comes with dual GbE LAN ports with Intel i219LM + i210IT, 1 display port / 1 HDMI port, and 7 USB ports (1 USB 3.1 (Type C), 2 USB 3.0 (rear via headers), 4 USB 2.0 (rear via headers).
E100-9S-H-Front-Description
This system is designed to operate in harsh environments with operating temperatures ranging from 32°F to 122°F and non-operating temperatures of -40°F to 158°F. In addition, this particular system is compliant with both IEC 60068-2-64 and IEC 60068-2-27, so they can absorb continuous vibration and shock.

The SYS-E100-9S dual-core system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.
More Information
Specification
Proccessor Support 7th Generation Intel® Core™ i7-7600U Processor
Key Applications IoT Edge Computing
Kiosk, Interactive information system
Environmental Monitor
Outstanding Features Core i Fanless Compact Ruggedized Box PC
1 HDMI and 1 Display Port
1 USB3.1, 2 USB 3.0, 4 USB 2.0
4 COM (RS-232/422/485), 1 DIO via DB9
2 Gigabit Ethernet Ports
TPM2.0 onboard
Serverboard SUPER® X11SSN-H-WOHS
Chipset System on Chip
System Memory (Max.) Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Expansion Slots 1 Full size Mini-PCIe; 1 M.2 2280 B-Key
Onboard Strorage Controller 1 M.2 2280 B-Key for SATA SSD
Connectivity Dual LAN with Intel®PHY I219LM, 1 USB3.1, 2 USB3.0, 4 USB2.0, 4 COM (RS-232/422/485), 1 DIO via DB9, TPM2.0 onboard
VGA/Audio 1 DisplayPort, 1 HDMI
Management AMT, SuperDoctor® 5, vPro, Watchdog
Drive Bays N/A
Peripheral Bays N/A
Power Supply Lockable 12V DC 60W power adapter
Cooling Systen Fanless
Form Factor 195 x 44 x 151mm (7.68" x 1.73" x 5.94")
