Supermicro CloudDC SuperServer (SYS-620C-TN12R)
- CloudDC SuperServer - Pre-Configured
- CPU: 2 Intel® Xeon® Gold 6326 Processor 16-Core
- Chassis: 2U / 1 Node
- Drive: 1600GB M.2 NVMe SSD, 140TB 3.5" SATA3 HD, 15.36TB 2.5" NVMe SSD
- RAM: 512GB DDR4 3200MHz Server Memory
- Network Ports: AIOM - 1 10GbE (2 SFP+, 2 RJ45 Ports)
- Ships Within 24 Hours - 1 Available Only!
Out of stock
SKU
SYS-620C-TN12R-PRE-CONFIG-1
Notify me when this product is in stock
CloudDC (Cloud Data Center) is the newest product in the Supermicro X12 family. The CloudDC product family is optimized for data centers and cloud solutions. CloudDC provides customers with the flexibility to fine-tune their configuration to get the best value.
SYS-620C-TN12R supports dual 3rd generation Intel® Xeon® Scalable Processor (up to 270W), 6TB DDR4-3200MHz memory in 16 DIMM slots, and 6 PCI-E slots including 2 PCI-E 4.0 x16 and 4 PCI-E 4.0 x8. In addition, this system has 2 flexible AIOM ports (OCP 3.0) so you can easily swap in 1GbE, 10GbE, 25GbE, 100GbE AIOM cards to support your networking requirements.
This system includes 12 hot-swappable 3.5/2.5” hybrid (NVMe, SATA, SAS) drive bays. Whether you want a system with 12 blazing fast NVMe drives or just one SATA drive, this system is capable to handle your storage needs. If you want to change or add any PCI-E or AIOM cards, the two brackets that holds the 6 PCI-E cards are all tool-less so you can easily swap out cards at ease.
If you are in the market for a server that is extremely flexible, easy to use, and future-proof, CloudDC is the server for you.
SYS-620C-TN12R supports dual 3rd generation Intel® Xeon® Scalable Processor (up to 270W), 6TB DDR4-3200MHz memory in 16 DIMM slots, and 6 PCI-E slots including 2 PCI-E 4.0 x16 and 4 PCI-E 4.0 x8. In addition, this system has 2 flexible AIOM ports (OCP 3.0) so you can easily swap in 1GbE, 10GbE, 25GbE, 100GbE AIOM cards to support your networking requirements.
This system includes 12 hot-swappable 3.5/2.5” hybrid (NVMe, SATA, SAS) drive bays. Whether you want a system with 12 blazing fast NVMe drives or just one SATA drive, this system is capable to handle your storage needs. If you want to change or add any PCI-E or AIOM cards, the two brackets that holds the 6 PCI-E cards are all tool-less so you can easily swap out cards at ease.
If you are in the market for a server that is extremely flexible, easy to use, and future-proof, CloudDC is the server for you.
| Max Number of CPU | 2 |
|---|---|
| Max Number of GPU Support | 2 |
| Specification | |
| Processor Support | Dual 3rd Gen Intel Xeon Scalable Processors up to 270W TDP |
| Key Applications | Financial Services Cloud Computing Network Appliance Private Cloud Content Delivery Network (CDN) Deep Learning Inferencing |
| Outstanding Features | Dual AIOM Slots for Flexible Networking 12x All Flash NVMe Supports 12x PCIe 4.0 NVMe Supports 2x PCIe-4.0 x16 + 2x PCIe-4.0 x16 (Configurable to x8) FHHL Expansion Slots Tool-less Drive Trays and Tool-less Brackets 1200W Redundant TitaniumLevel Power Supplies Dual 2.5" Rear Drive Trays (Optional) |
| Serverboard | X12DDW-A6 CloudDC |
| Chipset | Intel C621A Chipset |
| System Memory (Max.) | Up to 4TB ECC RDIMM/LRDIMM, DDR4-3200MT/s, in 16 DIMM slots |
| Expansion Slots |
4x PCIe 4.0 x16 FHHL slots (or) 2x PCIe 4.0x 16 FHHL 4x PCIe 4.0 x8 FHHL + 2x AIOM for OCP 3.0 NIC |
| Onboard Strorage Controller | Onboard SATA Controller; RAID 0, 1, 5, 10 |
| Connectivity | N/A |
| VGA/Audio | Onboard VGA from AST2600 BMC |
| Management | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Drive Bays |

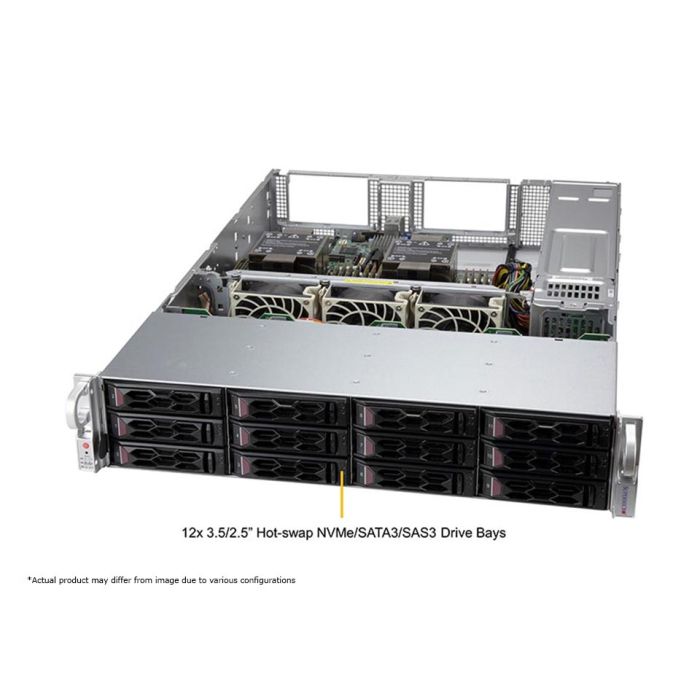

12x 3.5" Tool-less Hot-swap NVMe/SAS/SATA Hybrid Drive Bays
2x 2.5" Rear Hot-swap Drive Bays (Optional) Internal Storage Options (Dual NVMe M.2 / SATADOM) |
| Peripheral Bays | N/A |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Cooling System | 3x 80x38mm counter-rotation PWM fans |
| Form Factor | 2U Rackmount 437 x 89 x 647mm (17.2" x 3.5" x 25.5") |
|
