Supermicro SYS-610U-TNR 1U Rackmount DP Ultra SuperServer

  • Key Features/Applications: Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5" Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 12TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options

SKU
SYS-610U-TNR

* Verplichte velden

SYS-1029U-TN10RT Top View
Supermicro X12 Ultra SuperServers zijn ontworpen om de hoogste prestaties, flexibiliteit, schaalbaarheid en bruikbaarheid te leveren aan veeleisende IT-omgevingen, en om bedrijfskritische workloads aan te drijven, inclusief ondersteuning voor de 3e generatie Intel® Xeon® Scalable processors en een nieuwe klasse van groot, betaalbaar geheugen - Intel Optane DC Persistent Memory. De Intel® UltraPath Interconnect (UPI) en Cross Bar technologieën bieden directe communicatie tussen twee CPU's in een dual-socket server om de prestaties te verhogen en de latency drastisch te verlagen.

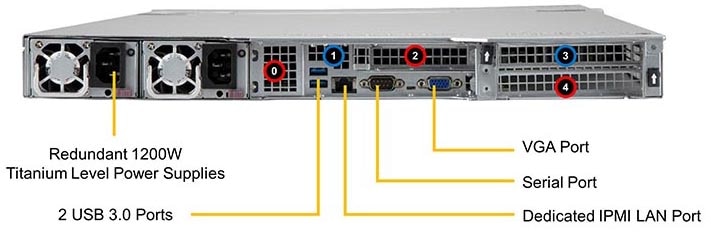

SYS-1029U-TN10RT Back View
Deze SYS-610U-TNR 1U Ultra server ondersteunt de nieuwste 3e generatie Intel® Xeon® Scalable processors, tot 8TB DDR4-3200MHz geheugen in 32 DIMM sloten en 4 rechtstreeks aangesloten 3,5" hybride harde schijven. Met de Ultra 610U-TNR kunt u 4x Gen 4 NVMe, SAS of SATA in elke tray plaatsen en mixen zonder beperkingen en zonder snelheidsverlies. Bovendien ondersteunt deze SYS-610U-TNR dubbele 10GbE RJ45-poorten, waardoor u kunt profiteren van hoge netwerksnelheden die aansluiten op uw behoeften. De 610U-TNR heeft 4 PCI-E aan de achterzijde (1 interne PCI-E 4.0 x16, 1 PCI-E 4.0 x16 (LP), en 2 PCI-E 4.0 x16 (FH, 10,5"L)).

Ultra SuperServer® 12e generatie is een van de meest krachtige, gebalanceerde en groene computerservers ter wereld. Ultra is ontworpen om de hoogste prestaties, flexibiliteit, schaalbaarheid en bruikbaarheid te leveren aan veeleisende IT-omgevingen en om bedrijfskritische werklasten te ondersteunen. De X12 was een legendarisch vlaggenschip in de laatste 2 generaties van het Supermicro Intel platform, en is in deze 3e generatie nog verder verbeterd.

More Information
CPU3rd Gen Intel® Xeon® Scalable
Specification
Processor Support
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported
  • TDP up to 270W; 3 UPI
Key Applications
  • HPC
  • Virtualization
  • 5G/Telco
  • Application Tier Service Provider
  • Software Defined Storage
  • High End Enterprise Server
  • Cloud Computing
Outstanding Features
  • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM)
  • Optimized cooling with support up to 270W TDP processors
  • Modular Components for Building Application-Optimized Solutions
  • Hot-swappable hybrid drive bays supporting NVMe, SATA or SAS
  • Flexible onboard networking options
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Configurable number of PCI-E 4.0 expansion slots with support for double-width GPUs and FPGAs.
Serverboard
  • X12DPU-6
Chipset
  • Intel® C621A
System Memory
Expansion Slots
  • 2 PCI-E 4.0 x16 FH, 10.5"L slots
  • 1 PCI-E 4.0 x16 LP slot
  • 1 PCI-E 4.0 x16 Internal LP slot
Onboard Storage Controller
  • Intel® SATA
Connectivity
  • 2x 10GbE RJ45 and 2x 10GbE SFP+ with Intel® X710-TM4 (optional)
  • 2x 10GbE RJ45 with Intel® X710-AT2 (optional)
VGA/Audio
  • 1 VGA port
Management
  • Intel® Node Manager; IPMI 2.0; KVM with dedicated LAN; NMI; Redfish API; SUM; SuperDoctor® 5; Supermicro Out of Band (OOB) License; Watch Dog
Drive Bays
  • 4x 3.5" hot-swap NVMe/SATA/SAS drive bays; 4x 2.5" NVMe hybrid;
  • Optional RAID support via RAID controller AOC
Peripheral Bays
  • None
Power Supply Redundant 1200W Titanium level (96%)
Cooling System 8x 4cm heavy duty fan(s)
Form Factor
  • 1U Rackmount
  • Enclosure: 437 x 43 x 754mm (17.2" x 1.7" x 29.7")
  • Package: 605 x 203 x 950mm (23.81" x 7.99" x 37.4")
Title Format Date
Supermicro Ultra SuperServers Video April 2021
Server Manual PDF April 2021
Quick-References Guide PDF April 2021
OS Certification Matrix Link N/A
Drivers & Utilities
Link N/A
BIOS
Link N/A
