A+ Systems

• Key Features/Applications: Virtualization, Data Center Optimized, Firewall Applications, Database/Storage, Edge/Cloud Computing Services
• CPU: Single AMD EPYC™ 8004 Series Processor, up to 64 Cores
• Chassis: 2U
• Drive: Up to 12x 3.5" Front Hot-Swap SATA Drive Bays
• RAM: Up to 576GB of DDR5 ECC RDIMM in 6 DIMM Slots
• GPU: Up to 1 Double-Width or 2 Single-Width GPUs
• Network Ports: 2x 10GBase-T RJ45 LAN Ports
• Power Supply: 2x 800W Redundant Titanium Level Power Supplies

• Key Features/Applications: Deep Learning/AI/Machine Learning Development, Cloud Gaming, Rack Workstation
• CPU: Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processor, up to 96 Cores
• Chassis: 2U
• Drive: Up to 8x 2.5" Front Hot-Swap NVMe/SAS/SATA Drive Bays
• RAM: Up to 2TB of DDR5 ECC RDIMM in 8 DIMM Slots
• GPU: Up to 4 GPUs
• Network Ports: Flexible Networking Options with up to 2 AIOM Slots
• Power Supply: 2x 2600W Redundant (1 + 1) Titanium Level Power Supplies
• Supports NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition Graphics Cards

* Estimated lead time is currently 8-10 weeks. Actual delivery schedule will depend on quantity and availability.

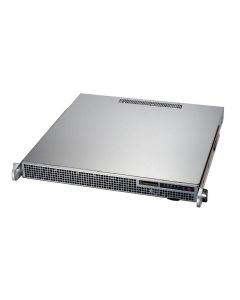

• Key Features/Applications: Remote Office/Branch Office Infrastructure
• CPU: Single AMD EPYC™ 4564P Processor, 16 Cores
• Chassis: 1U
• Drive: 1x 1.92TB M.2 NVMe SSD
• RAM: 1x 32GB DDR5-5600 UDIMM Memory
• Network Ports: 2x 1GbE RJ45 LAN Ports
• Power Supply: 1x 500W Platinum Level Power Supply
• Pre-Configured 1U UP Mainstream A+ System View Datasheet

Lot 9 Compliance Notice: This product is exempt from Lot 9 requirements in accordance with relevant regulations. Before purchasing, please ensure the equipment type or your intended use for this product aligns with the Lot 9 exemption criteria.

Please find the details here.

* Estimated lead time is currently 2-3 weeks. Actual delivery schedule will depend on quantity and availability.

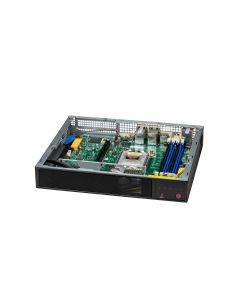

• Key Features/Applications: Retail Store Appliance
• CPU: Single AMD EPYC™ 4545P Processor, 16 Cores
• Chassis: Mini-1U / Fan-based Embedded
• Drive: 1x 960GB M.2 NVMe SSD
• RAM: 1x 32GB DDR5-5600 UDIMM Memory
• Network Ports: 4x 1GbE RJ45 LAN Ports
• Power Supply: 1x 180W DC Power Adapter
• Pre-Configured Mini-1U Embedded System View Datasheet

Lot 9 Compliance Notice: This product is exempt from Lot 9 requirements in accordance with relevant regulations. Before purchasing, please ensure the equipment type or your intended use for this product aligns with the Lot 9 exemption criteria.

Please find the details here.

* Estimated lead time is currently 2-3 weeks. Actual delivery schedule will depend on quantity and availability.

• Key Features/Applications: Generative AI, AI Inference, Model Training, 3D Graphics and Video Rendering, Cloud Gaming
• CPU: Single AMD EPYC™ 4005/4004 Series Processor Per Node, up to 16 Cores
• Chassis: 3U / 5 Nodes
• Drive: Up to 2x 2.5" Internal Fixed PCIe 5.0 NVMe + 2x 2.5" Internal Fixed SATA Drive Bays Per Node
• RAM: Up to 192GB of DDR5 ECC/non-ECC UDIMM in 4 DIMM Slots Per Node
• GPU: Up to 2 GPUs Per Node
• Network Ports: Flexible Networking Options with PCIe 5.0 MicroLP Interfaces
• Power Supply: 4x 2000W Redundant (3 + 1) Titanium Level Shared Power Supply

* Complete systems only with all 5 nodes populated.

Important Information: This SKU and/or associated compatible components are approaching End of Sale (EOS). To ensure you benefit from a full warranty and ongoing support, we recommend considering other SKUs or contacting us for a product recommendation.

• Key Features/Applications: Enterprise Server, iSCSI SAN, HPC, Data Center, Database Processing & Storage, Corporate Database, Appliance Optimized Storage Building Blocks
• CPU: Single AMD EPYC™ 9005/9004 Series Processor, up to 84 Cores
• Chassis: 2U
• Drive: Up to 24x 3.5" Hot-Swap SAS/SATA + 2x 2.5" Hot-Swap SATA Drive Bays. Supports up to 24x 3.5" Hot-Swap SAS/SATA + 6x 2.5" Hot-Swap NVMe/SATA Drive Bays (Optional)
• RAM: Up to 3TB (AMD EPYC™ 9004 Series Processor)/ 4.5TB (AMD EPYC™ 9005 Series Processor) of DDR5 ECC RDIMM in 12 DIMM Slots
• Network Ports: 1x 1GbE RJ45 Dedicated BMC LAN Ports
• Power Supply: 1x 1600W Titanium Level Power Supply

• Key Features/Applications: Designed for financial companies, AMD Xilinx Solarflare X2 and X3 Ethernet adapters validated
• CPU: Single AMD EPYC™ 4005/4004 or AMD Ryzen™ 9000/7000 Series Processors, up to 16 Cores
• Chassis: 2U
• Drive: Up to 8x 3.5" Front Hot-Swap SAS/SATA Drive Bays
• RAM: Up to 192GB of DDR5 ECC/non-ECC UDIMM in 4 DIMM Slots
• GPU: Up to 2 GPUs
• Network Ports: 2x 1GbE RJ45 LAN Ports
• Power Supply: 2x 800W Redundant (1 + 1) Titanium Level Power Supplies

Important Information: This SKU and/or associated compatible components are approaching End of Sale (EOS). To ensure you benefit from a full warranty and ongoing support, we recommend considering other SKUs or contacting us for a product recommendation.

• Key Features/Applications: 2D/3D Content Creation, VR Content Development, AI Inference / Training, 3D Rendering, Product Design and Engineering Simulation
• CPU: Single AMD Ryzen™ Threadripper™ PRO 7000X/WX Series Processor, up to 96 Cores
• Chassis: Mid-Tower
• Drive: Up to 2x 3.5" Internal Fixed SATA + 6x 2.5" Internal Fixed SATA Drive Bays
• RAM: Up to 512GB of DDR5 ECC RDIMM in 4 DIMM Slots
• GPU: Up to 2 GPUs
• Network Ports: 2x 10GbE RJ45 LAN Ports with Broadcom® BCM57416
• Power Supply: Flexible Power Supply Options. 1x 1000W Gold or 1x 1300W Gold or 1x 2000W Platinum Level Power Supplies
• Supports NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition or Max-Q Workstation Edition Graphics Cards
• Supermicro’s AS -531AW-TC SuperWorkstation Won NAB Show 2025 Product of the Year Award

Lot 9 Compliance Notice: This product is exempt from Lot 9 requirements in accordance with relevant regulations. Before purchasing, please ensure the equipment type or your intended use for this product aligns with the Lot 9 exemption criteria.

Please find the details here.

• Key Features/Applications: Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode
• CPU: Single AMD EPYC™ 9005/9004 Series Processor, up to 192 Cores
• Chassis: 1U
• Drive: Up to 8x 2.5" Front Hot-Swap PCIe 5.0 NVMe/SAS/SATA Drive Bays + 4x 2.5" PCIe 5.0 NVMe/SAS/SATA Drive Bays (Optional)
• RAM: Supports DDR5 ECC RDIMM in 12 DIMM Slots
• Network Ports: Flexible Networking Options with 1 AIOM Networking Slot
• Power Supply: 2x 1000W/1200W/1600W/2000W Redundant (1 + 1) Titanium Level Power Supplies
• All-in-one Platform for Cloud Data Centers, Based on the OCP Data Center Modular Hardware System (DC-MHS) with Flexible I/O and Storage Configurations

* Estimated lead time is currently 8-10 weeks. Actual delivery schedule will depend on quantity and availability.

• Key Features/Applications: Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login
• CPU: Single AMD EPYC™ 4004 Series or AMD Ryzen™ 7000/9000 Series Processor Per Node, up to 16 Cores
• Chassis: 3U / 10 Nodes
• Drive: Up to 2x 2.5" Internal Fixed PCIe 5.0 NVMe + 2x 2.5" SATA Drive Bays Per Node
• RAM: Up to 192GB of DDR5 ECC/non-ECC UDIMM in 4 DIMM Slots Per Node
• GPU: Up to 1 GPU Per Node
• Network Ports: Flexible Networking Options
• Power Supply: 4x 2000W Redundant (2 + 2 or 3 + 1) Titanium Level Power Supplies

* Complete systems only with all 10 nodes populated.

* Estimated lead time is currently 8-10 weeks. Actual delivery schedule will depend on quantity and availability.

Important Information: This SKU and/or associated compatible components are approaching End of Sale (EOS). To ensure you benefit from a full warranty and ongoing support, we recommend considering other SKUs or contacting us for a product recommendation.
