Supermicro AS -1116CS-TN 1U Rackmount H14 UP CloudDC A+ Server

Be the first to review this product
  • Key Features/Applications: Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode
  • CPU: Single AMD EPYC™ 9005/9004 Series Processor, up to 192 Cores
  • Chassis: 1U
  • Drive: Up to 8x 2.5" Front Hot-Swap PCIe 5.0 NVMe/SAS/SATA Drive Bays + 4x 2.5" PCIe 5.0 NVMe/SAS/SATA Drive Bays (Optional)
  • RAM: Supports DDR5 ECC RDIMM in 12 DIMM Slots
  • Network Ports: Flexible Networking Options with 1 AIOM Networking Slot
  • Power Supply: 2x 1000W/1200W/1600W/2000W Redundant (1 + 1) Titanium Level Power Supplies
  • All-in-one Platform for Cloud Data Centers, Based on the OCP Data Center Modular Hardware System (DC-MHS) with Flexible I/O and Storage Configurations

* Estimated lead time is currently 8-10 weeks. Actual delivery schedule will depend on quantity and availability.

Buy More, Save More
Request quote for volume discount

SKU
AS -1116CS-TN
Share on Facebook Share on Twitter
Email
main product photo

* Required Fields

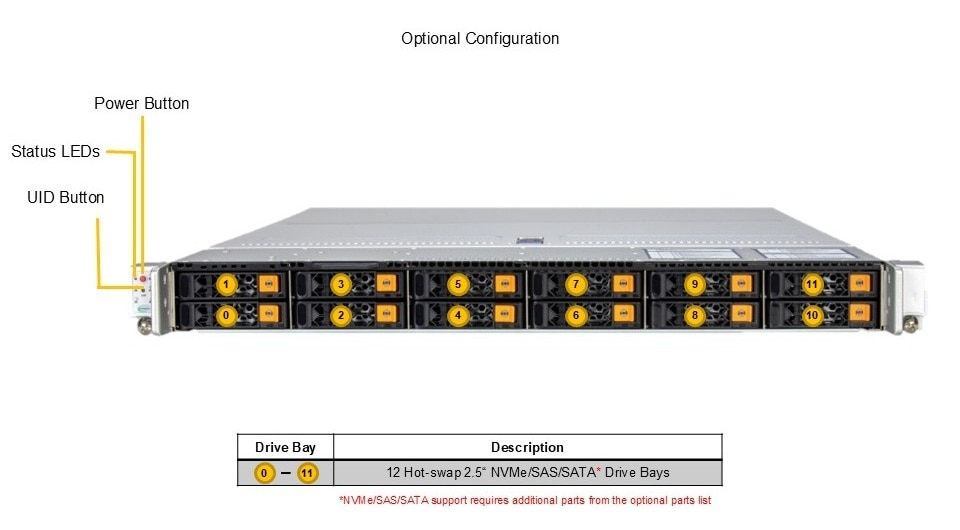

AS -1116CS-TN Front

All-in-one Platform Design, Cloud-Optimized Performance for Data Centers

The Supermicro AS -1116CS-TN is a 1U CloudDC server engineered for the demands of hyperscale and cloud computing environments. Built on the OCP Data Center Modular Hardware System (DC-MHS) with a Modular Density Optimized (M-DNO) HPM Form Factor, it offers flexible I/O and storage configurations. This server is ideal for virtualization, CDN, edge nodes, and as a powerful storage headnode.

Unleash AMD EPYC Power and DDR5 Speed

Experience robust performance with a single AMD EPYC™ 9005/9004 Series Processor. The AS -1116CS-TN supports up to 12 DIMM slots, delivering up to 6400MT/s of high-speed DDR5 memory. This combination provides the raw power and memory bandwidth necessary for HPC and data-intensive applications, ensuring your cloud infrastructure runs efficiently.

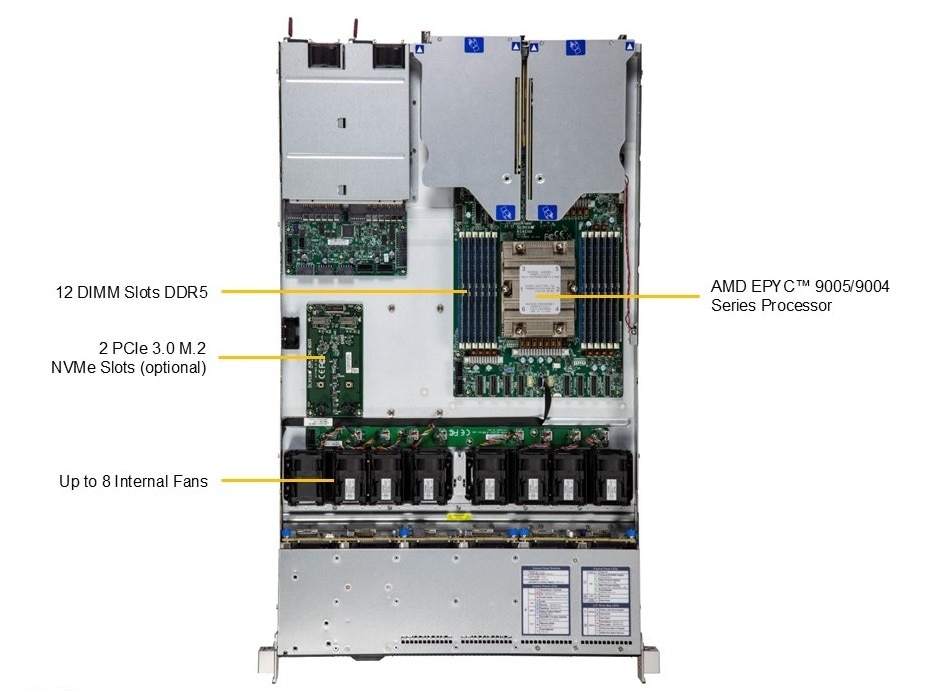

AS -1116CS-TN Top

Flexible Expansion and Scalable Storage

This system offers impressive expansion capabilities with two PCIe 5.0 x16 FHHL slots. With up to 12 hot-swappable 2.5" NVMe/SAS/SATA drive bays, you can easily configure blazing-fast all-flash NVMe storage or hybrid solutions. The tool-less design simplifies component swaps, ensuring user-friendly maintenance and future-proofing your investment.

Reliability and Versatile Connectivity

The AS -1116CS-TN features flexible networking options with a PCIe 5.0 x16 AIOM slot, allowing you to seamlessly integrate 1GbE, 10GbE, 25GbE, or 100GbE AIOM cards. Paired with dual 1000W / 1200W / 1600W / 2000W redundant Titanium Level power supplies and a dedicated BMC LAN for remote management, this server ensures high availability and continuous operation for your mission-critical applications.

More Information
System Starting Price€4,486.75
CPUAMD EPYC™ 9000 Series
