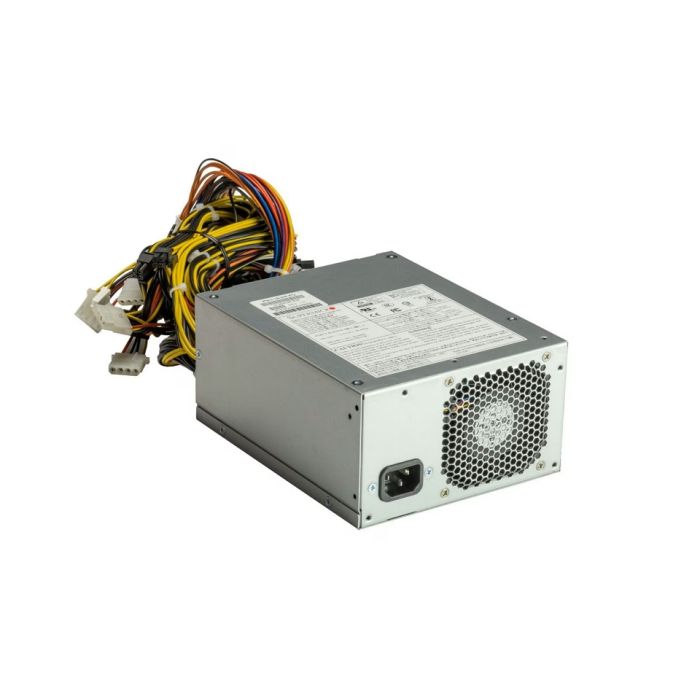

Supermicro 1000/1200W Multi-Output PS2 Platinum Level Power Supply (PWS-1K26P-PQ)
- Optimized for Workstations and Desktop Applications
- PMbus 1.2 Support for Remote Management
- 80 Plus Platinum Efficiency
- 1000W Low-Line and 1200W High-Line Output Power at 92% Efficiency
- 17ms Hold Up Time
- Semi-Modular Cable Output
- Supermicro Certified
IS THIS VALIDATED FOR MY SYSTEM OR MOTHERBOARD?
•System: Enter a server part number (e.g. SYS-1027B-MTF)
•Motherboard: Enter a motherboard part number (e.g. MBD-X10DRi)
Advanced Features for Optimal Performance
The Supermicro PWS-1K26P-PQ is a high-efficiency power supply unit designed to deliver reliable and efficient power to your high-performance systems. With a 1000W low-line and 1200W high-line output power, it can handle demanding workloads with ease.
The PWS-1K26P-PQ features active power factor correction (PFC) for improved power quality and reduced power consumption. Its quiet fan ensures minimal noise disruption, even under heavy loads. The card edge connector enables seamless integration with compatible Supermicro 1U systems.
Reliable and Safe Operation
Built with safety in mind, the PWS-1K26P-PQ includes advanced protection circuits to safeguard your system from overvoltage, overcurrent, and short circuits. Additionally, it adheres to RoHS standards, promoting environmental sustainability.
| Total Power Output | 1000W / 1200W |
|---|---|
| Type | Single |
| Type of Power Supply | Power Supply |
| Form Factor | Tower |
| Dimension (W x H x L) | 150 x 86 x 185mm |
| +5V | 20A |
| +12V | 83A (1000W) / 99A (1200W) |
| +3.3V | 20A |
| 5V Standby | 3A |
| Input Voltage Range | 100-114.9Vac: 1000W / 114.9-240Vac: 1200W |
| Input Frequency Range | 50-60Hz |
| Input Current Range | 100-240Vac: 12.5 - 8A |
| Output Type | 24Pin ATX Cable Output |
| 8Pin / 4Pin (12V) Connector | 24Pin / 8Pin /4Pin /4Pin Peripheral / SATA |
| Voltage / Current | Yes |
| Energy Efficiency | 92%+ |
| 80 Plus Certification | 80 Plus Platinum |
| Warranty | 1 year warranty |
| Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
|
