Supermicro SSG-521E-E1CR24H 2U Rackmount X13 UP Storage SuperServer

Supermicro SSG-521E-E1CR24H: A Powerful Solution for Data Centers and Enterprise Storage Needs

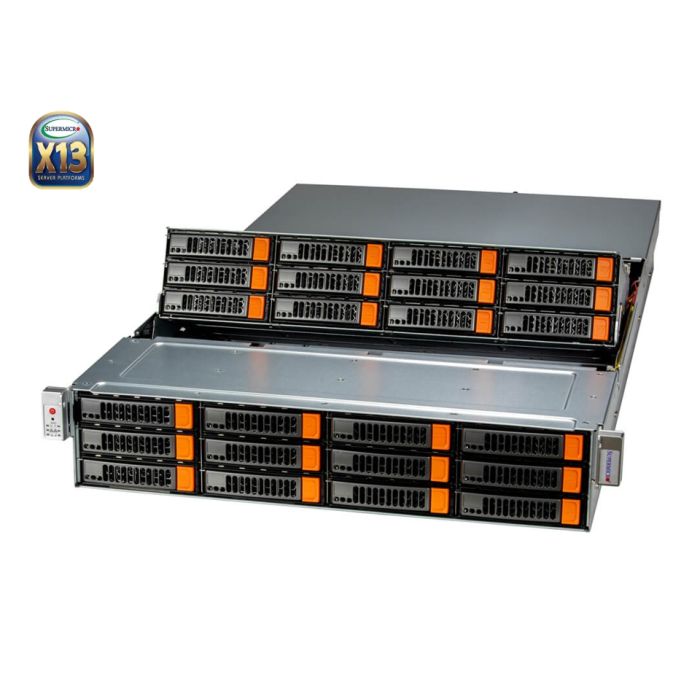

Supermicro's SSG-521E-E1CR24H is a 2U storage server with 24 front/top-loading 3.5" hot-swap bays. Featuring a single Intel Xeon Scalable processor, PCIe 5.0, and hardware RAID, it's a powerful solution for data centers and enterprise storage needs.

Optimized for Data Center Storage

The Supermicro SSG-521E-E1CR24H is a 2U front/top-loading storage server, meticulously engineered for data-intensive applications. With 24 hot-swap 3.5" SAS/SATA drive bays, this system is a powerful building block for iSCSI SAN, corporate databases, and high-performance computing (HPC). Its innovative design allows for easy access and serviceability in densely packed data centers.

Powerful Processing and Next-Gen Connectivity

Powered by a single 5th/4th Gen Intel® Xeon® Scalable processor, this server delivers exceptional performance for database processing and storage. It features a robust architecture with up to 6 PCIe 5.0 slots, including one dedicated PCIe 5.0 x16 AIOM slot, ensuring flexible, high-speed networking. The onboard Broadcom® 3908 controller provides hardware RAID support for enhanced data protection and integrity.

Flexible Storage and Enhanced Reliability

Beyond the 24 front-loading bays, the SSG-521E-E1CR24H offers expanded storage options with 2 rear SATA slots and 4 optional rear NVMe slots, plus two M.2 NVMe/SATA slots. This flexibility allows you to configure a storage solution that perfectly matches your needs. Reliability is guaranteed with 1600W redundant Titanium Level power supplies and four hot-swap counter-rotate fans, ensuring continuous operation and optimal cooling.

Simplified Management and Efficient Design

Remote management is seamless with IPMI 2.0, KVM over LAN, and Media over LAN, allowing you to efficiently monitor and control the server from anywhere. Its front/top-loading design not only saves space but also simplifies maintenance, reducing the Total Cost of Ownership (TCO). This server is the ideal solution for any organization seeking a powerful, scalable, and reliable storage platform.

Key Features

• Front/top-loading 2U chassis
• Single 5th/4th Gen Intel® Xeon® Scalable processor

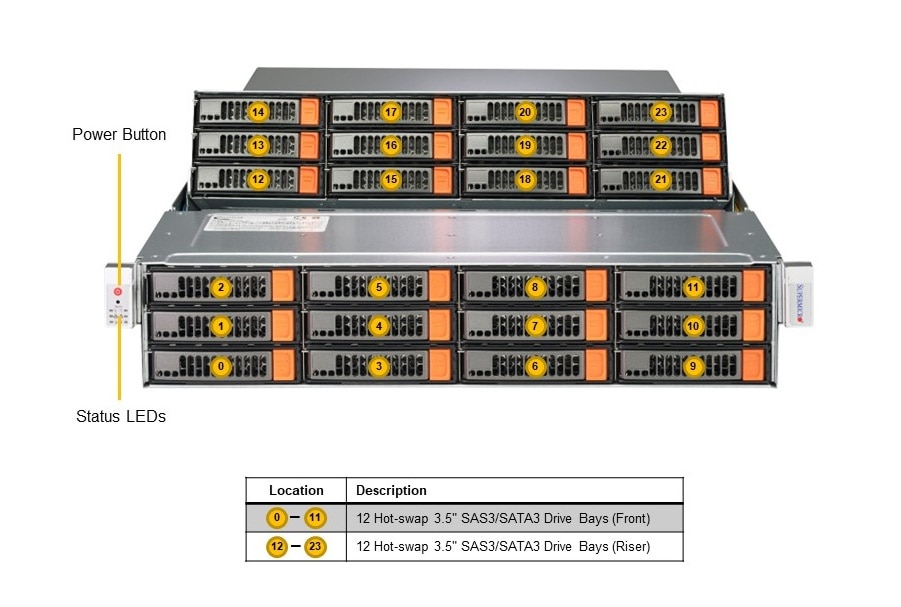

• 24 hot-swap 3.5" SAS/SATA drive bays, 2 Rear 2.5" SATA Slots, 4 Optional Rear NVMe Slots, 2 M.2 NVMe/SATA (M-key 2280/22110)
• Supports up to 6 PCIe 5.0 slots + 1 AIOM 4 PCIe 5.0 x8 FHHL slots
  2 PCIe 5.0 x16 FHHL slots
  1 dedicated PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
• Redundant 1600W Titanium Level power supplies
• HW RAID support via Broadcom® 3908
