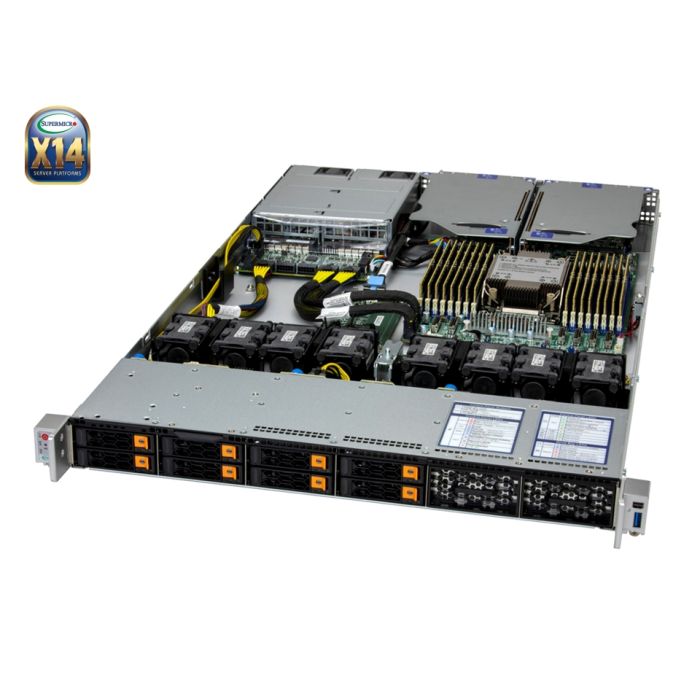

Supermicro SYS-112C-TN 1U Rackmount X14 UP CloudDC SuperServer
- Key Features/Applications: Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode
- CPU: Single Intel® Xeon® 6700/6500 Series Processors with P-cores or 6700 Series Processors with E-cores, up to 86 Cores (P-cores)/144 Cores (E-cores)
- Chassis: 1U
- Drive: Up to 8x 2.5" Front Hot-Swap PCIe 5.0 NVMe/SAS/SATA Drive Bays + 4x 2.5" PCIe 5.0 SAS/SATA Drive Bays (Optional)
- RAM: Up to 2TB of DDR5 ECC RDIMM in 16 DIMM Slots
- GPU: Up to 2 GPUs
- Network Ports: Flexible Networking Options with 2 PCIe 5.0 slots + 1 AIOM Networking Slot
- Power Supply: 2x 1000W Redundant (1 + 1) Titanium Level Power Supplies
- All-in-one Platform for Cloud Data Centers. Based on the OCP Data Center Modular Hardware System (DC-MHS) with Flexible I/O and Storage Configurations
- Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
- Supports DC-SCM module with OpenBMC
OCP-Inspired Innovation for Modern Cloud Architecture
Transform your data center with the Supermicro SuperServer SYS-112C-TN, a cutting-edge 1U rackmount server built for the demands of modern cloud infrastructure. Leveraging the OCP Data Center Modular Hardware System (DC-MHS) and Modular Scalable Density Optimized (M-SDNO) form factor, this powerhouse offers unparalleled I/O and storage flexibility. Perfect for virtualization, high-performance computing (HPC), AI workloads, content delivery networks, edge computing, and storage headnodes, it delivers scalable efficiency that powers cloud computing and data center optimization.
Intel® Xeon® 6 Performance and PCIe 5.0 Storage

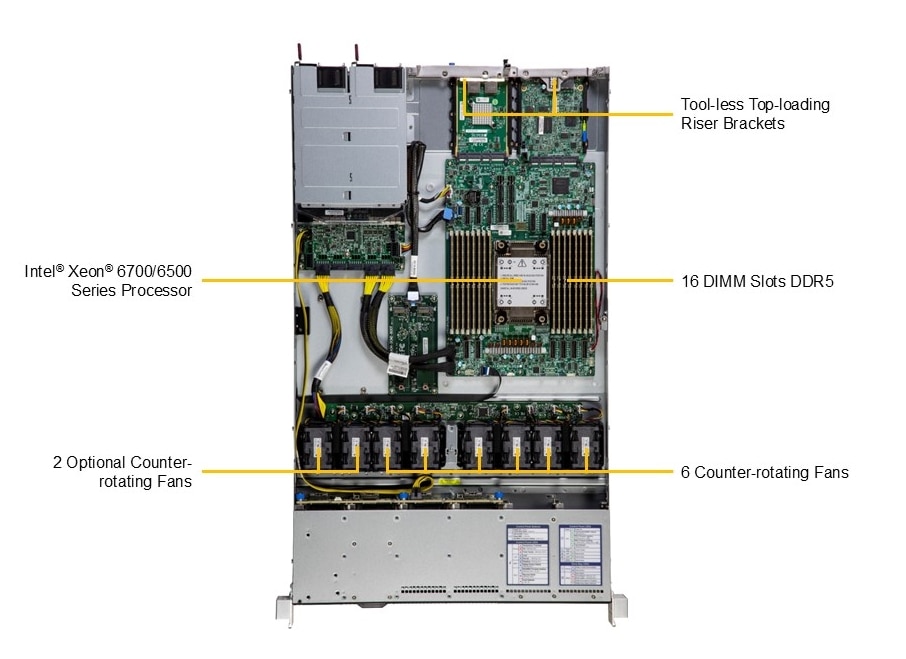

Powered by a single Intel® Xeon® 6700/6500 series processor, the SYS-112C-TN crushes intensive tasks. Memory prowess includes 16 DDR5 DIMM slots across 8 channels, supporting up to 4TB ECC DDR5 RDIMM at 5200MT/s (2DPC), 2TB at 6400MT/s (1DPC), or 512GB at 8000MT/s ECC DDR5 MRDIMM (P-core only, 1DPC)—ideal for memory-hungry AI and HPC applications. Storage versatility shines with 8 hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA bays (expandable to 12 with additional controllers/cables), plus 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) and optional RAID via Intel® VROC or add-on controllers for seamless data management.
Scalable Networking with AIOM and OpenBMC Remote Management

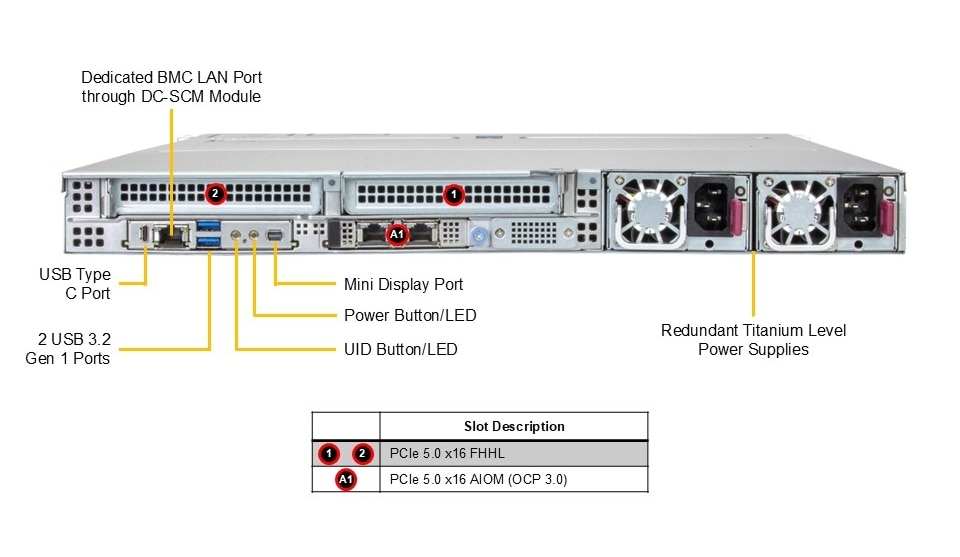

Expansion is effortless with 2 PCIe 5.0 x16 FHHL slots for up to 2 single-width GPUs and a dedicated AIOM slot (OCP NIC 3.0 compatible) for flexible networking. Connectivity includes 1 RJ45 1GbE BMC LAN, 2 USB 3.2 Gen1 Type-A (rear), and 1 Mini-DP port, while DC-SCM with OpenBMC ensures intuitive remote management via IPMI 2.0 and KVM-over-LAN.
High-Density Data Center Efficiency and NIST-Compliant Security
Dual redundant 1000W Titanium-level power supplies, up to 8 counter-rotating PWM 40x40x56mm fans, maintain optimal performance in 10°C–35°C environments. Security features include a TPM 2.0 header, Silicon Root of Trust (NIST 800-193 compliant), and runtime protections, safeguarding against threats in mission-critical setups. Compact at 1.7" H x 17.2" W x 29.4" D, the black chassis (CSE-MD101TS-R000NDP) fits high-density racks effortlessly. Embrace Supermicro's OCP-inspired innovation—unlock AI-accelerated, cloud-ready performance that scales with your ambitions today.
| System Starting Price | €6,035.55 |
|---|---|
| CPU | Intel® Xeon® 6 Processors with E-cores, Intel® Xeon® 6 Processors with P-cores |
