Supermicro SYS-221BT-DNTR 2U 2-Node Rackmount X13 DP BigTwin SuperServer

Revolutionizing Server Infrastructure with Supermicro BigTwin™

The Supermicro® BigTwin™ is a breakthrough modular multi-node server system that eliminates traditional modular vs rack computing design trade-offs. BigTwin is the 5th generation in the patented Supermicro Twin Family with a multitude of innovations and engineering breakthroughs. The no-compromise architecture delivers the efficiency of multi-node density optimized systems with the full features and power of traditional of a single node 2U system to a 2 nodes 2U system.

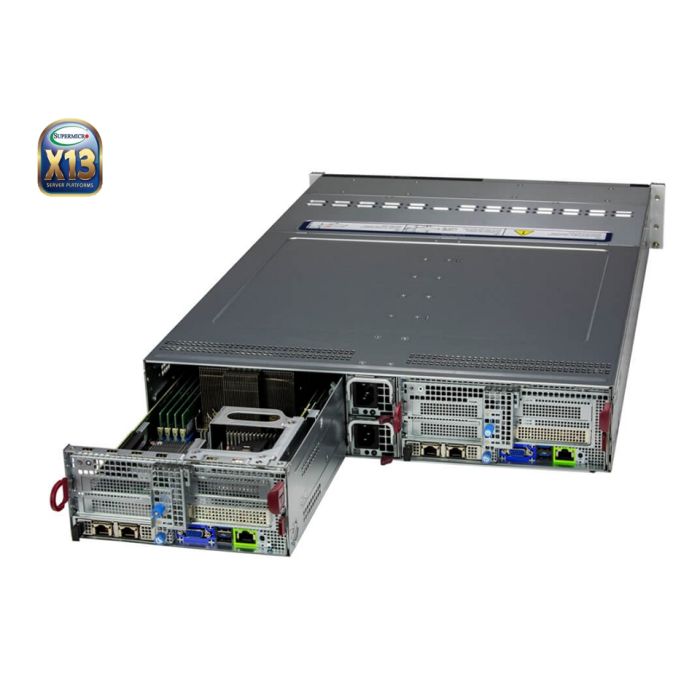

Empowering High-Performance Storage Solutions with Supermicro SYS-221BT-DNTR

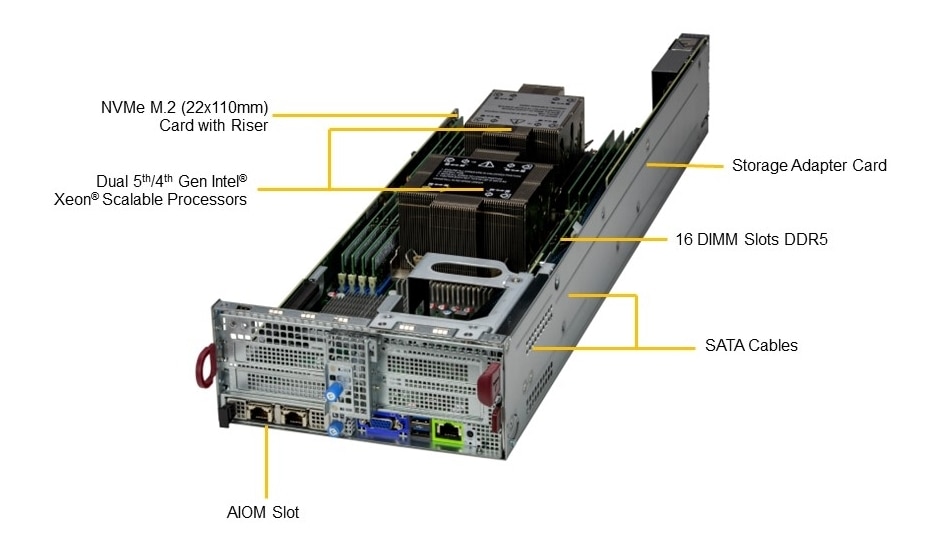

Discover the Supermicro SYS-221BT-DNTR, a cutting-edge solution for high-performance file systems, diskless HPC clusters, scale-out all-flash NVMe storage, big data analytics, and AI applications. This 2U form factor houses two hot-pluggable nodes, supporting 5th/4th Gen Intel® Xeon® Scalable processors and featuring 16 DIMM slots for up to 4TB of memory, with ECC RDIMMs up to DDR5-5600.

Flexible Expansion Options

The system offers versatile expansion capabilities with 1 PCIe 5.0 x16 (LP) slot, 2 PCIe 5.0 x8 (LP) slots, and an internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard. Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1 provides additional flexibility. Network connectivity is seamlessly integrated via AIOM (OCP 3.0 compliant).

Exceptional Storage Capabilities

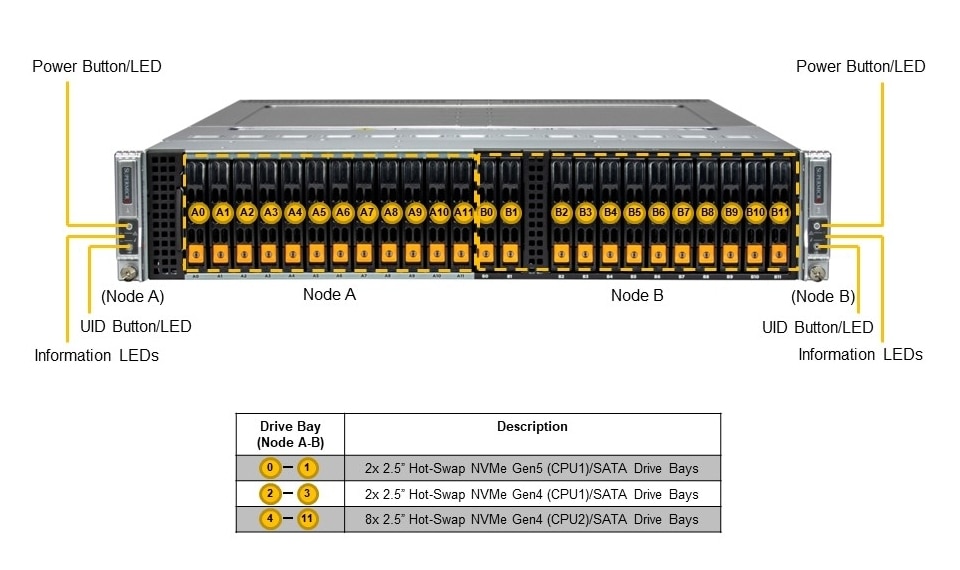

Featuring 12 hot-swap 2.5” drive bays, including 2x PCIe 5.0 NVMe/SATA and 10x PCIe 4.0 NVMe/SATA, the SYS-221BT-DNTR ensures efficient storage for demanding applications. The tool-less design simplifies maintenance, and liquid cooling support enhances thermal efficiency.

Reliable Power and Cooling Infrastructure

Backed by 2200W Redundant Power Supplies at Titanium Level (96%+), the shared power design ensures reliability. The system is equipped with 4 cooling fans per 2U enclosure at 16.5K RPM with a shared cooling design, maintaining optimal temperatures for consistent performance.

Elevate your storage infrastructure with the Supermicro SYS-221BT-DNTR, offering versatile performance and innovative design in a space-efficient 2U form factor.
