Supermicro SYS-510D-8C-FN6P Mini-1U Rackmount UP IOT System

Be the first to review this product

Key Features/Applications: Intel® QuickAssist Technology, Retail Application, Firewall, Gateway, uCPE
CPU: Single Intel® Xeon® Processor D-1736NT, CPU TDP 67W
Chassis: Mini-1U
Drive: Up to 1x 3.5" or 4x 2.5" Internal SATA Drive Bays
RAM: Up to 256GB of DDR4 ECC RDIMM in 4 DIMM Slots
Network Ports: 4x 1GbE RJ45 + 2x 25GbE SFP28 LAN Ports
Power Supply: 200W Low-Noise AC-DC Gold Level Power Supplies (Recommended only as a network appliance system due to Lot 9 regulations.)

Buy More, Save More

Request quote for volume discount

SKU

SYS-510D-8C-FN6P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

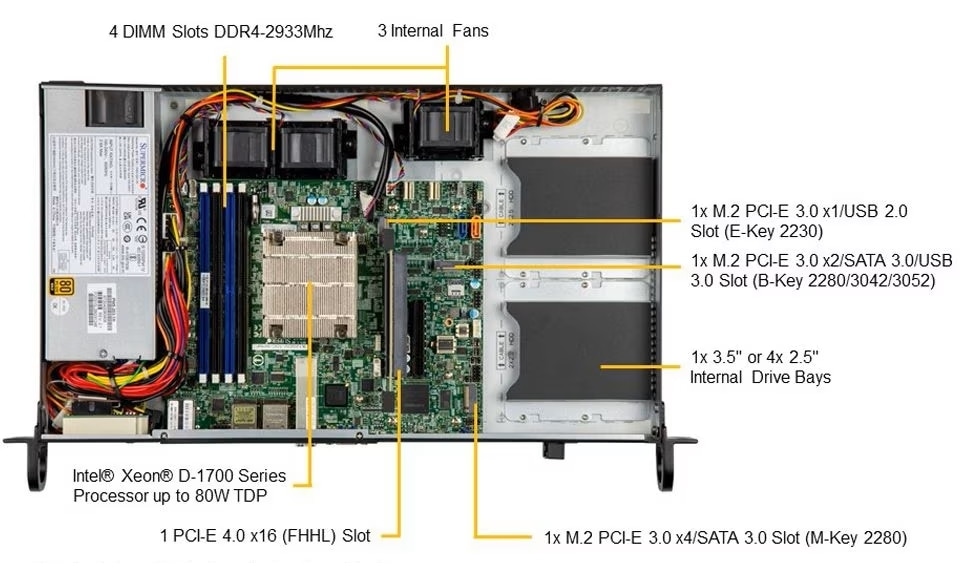

This SYS-510D-8C-FN6P comes with Intel Xeon D-1736NT Processor what has 8 cores, 16 threads, base frequency 2.7GHz, 15MB cache and TDP 67W. The server supports 2 fixed SATA drives, up to 256GB DDR4-2933MHz RDIMM in 4 DIMM slots. On board dual 25Gb/s Intel (2x SFP28), quad 1Gb/s Intel Ethernet Controller I350 & I210 (4x RJ45) and RJ45 port for IPMI 2.0 remote management with KVM and remote virtual media mount and TPM 2.0. The power supply’s energy efficiency is Gold Level.

Detailed Specification

More Information
CPU	Intel® Xeon® D
Specification

Resources
