Supermicro SYS-510P-MR-EU 1U Rackmount UP Mainstream SuperServer
- Key Features/Applications: Small Business, Web/Hosting Application, Email/Firewall/Print Server
- CPU: Single 3rd Generation Intel® Xeon® Scalable Processor, up to 36 Cores
- Chassis: 1U
- Drive: Up to 4x 3.5" Front Hot-Swap NVMe/SAS/SATA + 2x M.2 NVMe + 2x 2.5" Peripheral Drive Bays
- RAM: Up to 2TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
- GPU: Up to 1 Single-Width GPU
- Network Ports: 2x 1GbE RJ45 LAN Ports
Supermicro™'s Mainstream Application Optimized SuperServer® is an optimal entry-level or volume selection for Enterprise IT managers. By choosing the exact model with just the right set of integrated features needed for their applications, customers can save significant amounts on CAPEX, while Supermicro™s energy-efficient server designs will help them save on OPEX.
The Supermicro SYS-510P-MR-EU Mainstream SuperServer® supports a single 3rd Generation Intel® Xeon® Scalable processor (up to 220W TDP) and up to 3TB (4x 256GB DRAM and 4x 512GB PMem) 8 DIMM slots. Additionally, the SYS-510P-MR-EU has 2 NVMe/SATA M.2 onboard and includes 4 hot-swap 3.5" SATA drive bays with the option to support SAS3 with an additional SAS controller.

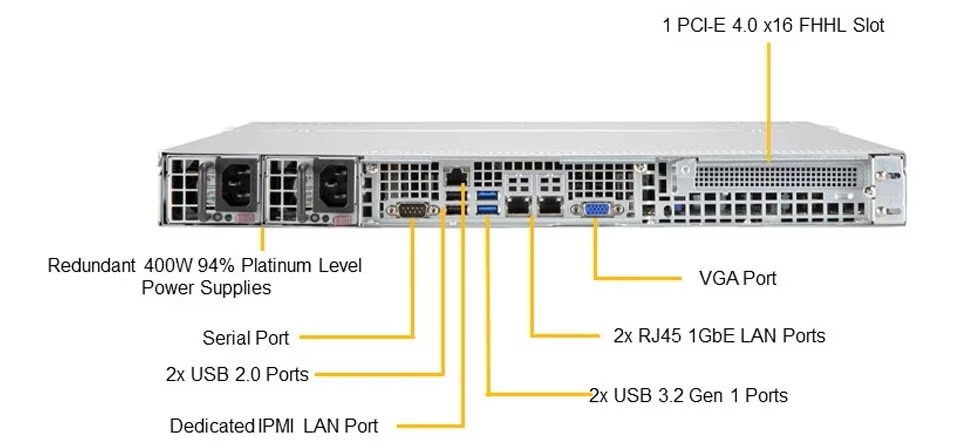

This Mainstream server is capable of using 1 PCI-E 4.0 x16 full-height half-length expansion slot, plus supports up to 2 RJ45 1GbE ports and 1 RJ45 dedicated IPMI port for KVM over dedicated LAN.
The Supermicro Mainstream Application Optimized product family supports a wide variety of Mainstream server applications, including general-purpose, email, firewall, print, and web hosting, in many attractive and cost-effective form factors.
