Supermicro SYS-E100-12T-H SBC UP IOT/Embedded System

  • Key Features/Applications: Industrial Automation, Retail, Smart Medical Expert Systems, Kiosk, Interactive Info System, IoT Gateway for Smart Factory, Smart Building, Security and Surveillance, Digital Signage
  • CPU: Single Intel® Core™ i7-1185GRE Processor, up to 4 Cores
  • Chassis: 3.5" SBC
  • Drive: Up to 2x M.2 Drive Bays
  • RAM: Up to 64GB of DDR4 Non-ECC SODIMM in 2 DIMM Slots
  • Network Ports: 2x 2.5GbE RJ45 LAN Ports
  • Excellent Operating Temperature Range: -30°C ~ 50°C (-22°F ~ 122°F)
  • Long Life Cycle Support
  • Hailo-8™ M.2 AI Acceleration Module Support. Contact Us if you would like to configure your own system.

* Estimated lead time is currently 6-8 weeks. Actual delivery schedule will depend on quantity and availability.

SKU
SYS-E100-12T-H

* Required Fields

SYS-E100-12T-H

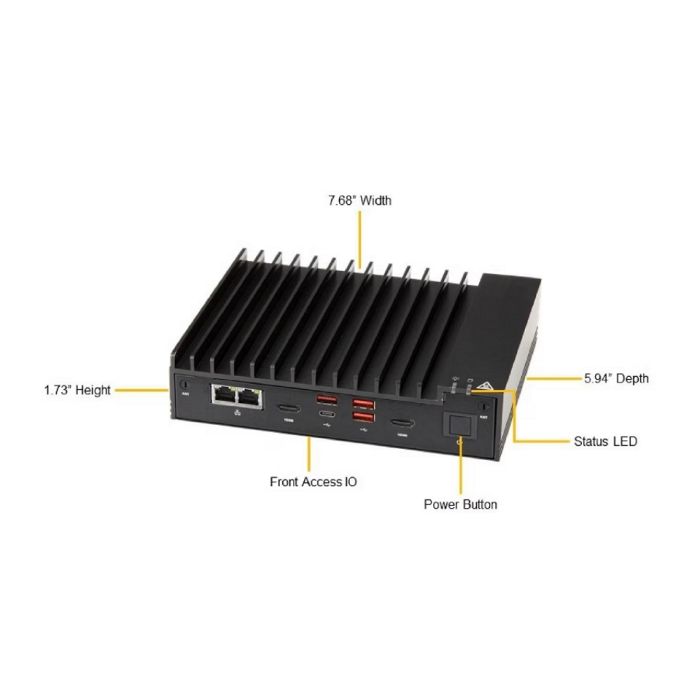

Despite its compact size, SYS-E100-12T-H is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 7.6 x 1.7 x 5.9 inches and weighing slightly over 4.5lbs. This particular IoT/embedded system is optimized for IoT gateways, smart retail/kiosks, environmental monitoring, and more.

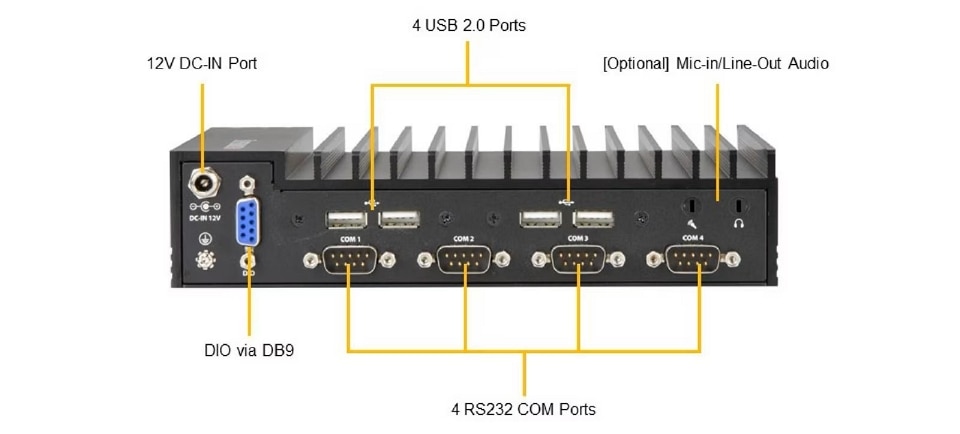

SYS-E100-12T-H supports Intel Tiger Lake 11th generation i7-1185G7E processor, up to 64GB DDR4 non-ECC SO-DIMM, and 1 x M.2 M-Key 2242/2280, 1 x E-Key 2230, 1 x B-Key 2242/2280/3342. In addition, this system comes with dual GbE LAN ports with Intel i219LM + i210IT, 1 display port / 1 HDMI port, and 8 USB ports (4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)).

This system is designed to operate in harsh environments with operating temperatures ranging from -30°C ~ 50°C (-22°F ~ 122°F) and non-operating temperatures of -40°C to 70°C (-40°F to 158°F). In addition, this particular system is compliant with both IEC 60068-2-64 and IEC 60068-2-27, so they can absorb continuous vibration and shock.

The SYS-E100-12T-H quad core system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.

More Information
CPU11th Gen Intel® Core™
Specification
