Supermicro SYS-E300-12C Compact 1U UP IOT/Embedded System

  • Key Features/Applications: Surveillance Security Server, AI Inference and Machine Learning, Digital Signage, Medical Application
  • CPU: Single Intel® Core™ i9/i7/i5/i3 or Intel® Xeon® W-1200 Processors, up to 10 Cores
  • Chassis: Compact 1U Box
  • Drive: Up to 2x 2.5" Drive Bays
  • RAM: Up to 64GB of DDR4 ECC/Non-ECC SODIMM in 2 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports
  • Long Life Cycle Support

* Estimated lead time is currently 6-8 weeks. Actual delivery schedule will depend on quantity and availability.

SKU
SYS-E300-12C

* Required Fields

SYS-E300-12C

Despite its compact size, SYS-E300-12C is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This system fits in the most compact of spaces, measuring in at only 10" x 1.7 x 8.9 inches and weighing slightly over 7.5lbs. This particular IoT/embedded system is optimized for network security appliance, universal customer premise equipment (uCPE), software defined WAN (SD-WAN), NFV edge computing server, virtualization server, and IoT edge computing / gateway.

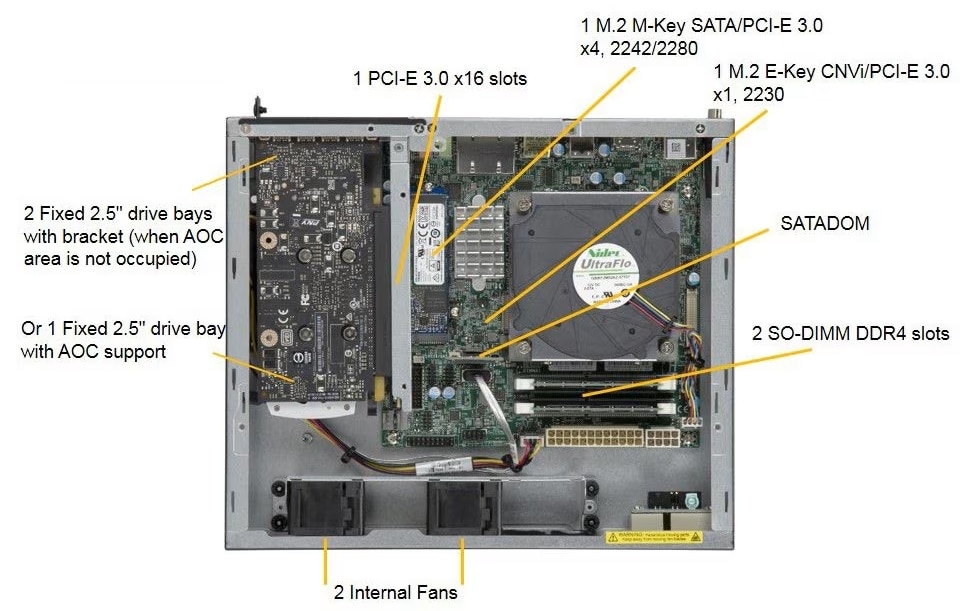

SYS-E300-12C can support Intel® Xeon® W-1200, Comet Lake 10th gen Core i9/i7/i5/i3 processor in the system, up to 64GB DDR4 ECC/Non-ECC/ SODIMM in 2 DIMM slots, and supports 2 Fixed 2.5" drive bays with bracket (when AOC area is not occupied) or 1 Fixed 2.5" drive bay with AOC support 1 2.5" drive bay. In addition, this system comes with dual 1GbE LAN ports, 1 VGA port, and 2 USB 3.0 ports.

The SYS-E300-12C core i system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.

More Information
CPUIntel® Xeon® W, 10th Gen Intel® Core™
Specification
