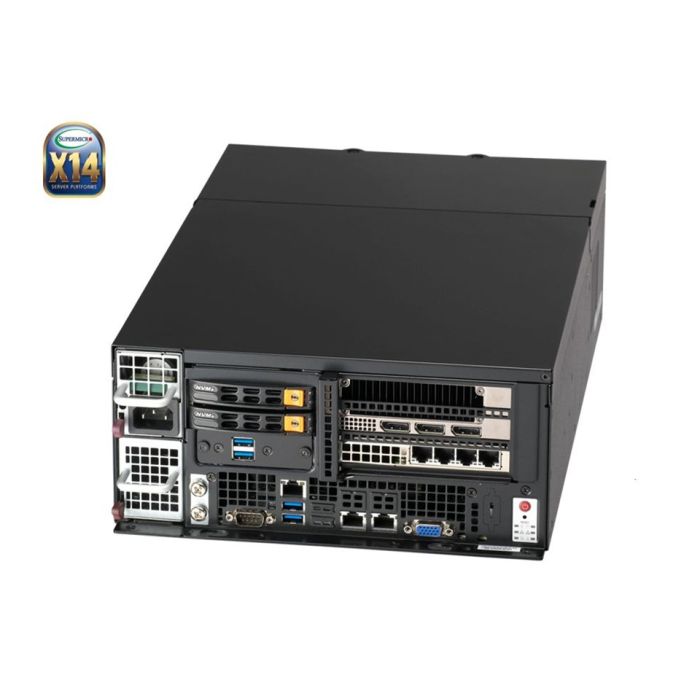

Supermicro SYS-E403-14B-FRN2T 2.5U Box Fan-Based IOT/Embedded X14 UP System
- Key Features/Applications: Multi-Access Edge Computing (MEC), Industrial Automation, Machine Learning (ML), Universal Customer Premise Equipment (uCPE), Artificial Intelligence at the Edge, Smart Retail, Medical Expert Systems
- CPU: Single Intel® Xeon® 6700/6500 Series Processors with P-cores or 6700 Series Processors with E-cores, up to 48 Cores (P-cores)/144 Cores (E-cores)
- Chassis: Fan-based Embedded
- Drive: Up to 2x 2.5" Front Hot-Swap NVMe + 2x 2.5" Internal Fixed SATA Drive Bays (Optional)
- RAM: Up to 2TB of DDR5 ECC RDIMM in 8 DIMM Slots
- GPU: Up to 2x GPUs Single-Width or 1x GPU Double-Width (up to 350W)
- Network Ports: 2x 10GbE RJ45 LAN Ports
Lot 9 Compliance Notice: This product is exempt from Lot 9 requirements in accordance with relevant regulations. Before purchasing, please ensure the equipment type or your intended use for this product aligns with the Lot 9 exemption criteria.
Please find the details here.
Edge AI & HPC in a Compact Form Factor
The Supermicro SYS-E403-14B-FRN2T is a robust and compact edge computing system, perfect for Multi-Access Edge Computing (MEC), Industrial Automation, and AI at the Edge. Measuring just 10.4" x 16.4" x 26" and weighing 18.5 lbs (8.16 kg), its fan-based embedded chassis can be easily wall-mounted, over desktop, or even in a rack. Also, it can be placed within a portable suitcase (Pelican 1535) to transport the system from “office” to “field” in a secure manner.
And to make it more versatile, the system can be fit inside an IP65 cabinet for outdoors installation for especial projects. The E403 is designed for mission-critical applications requiring maximum configurability and scalability.
Powerful Processing and Expandability

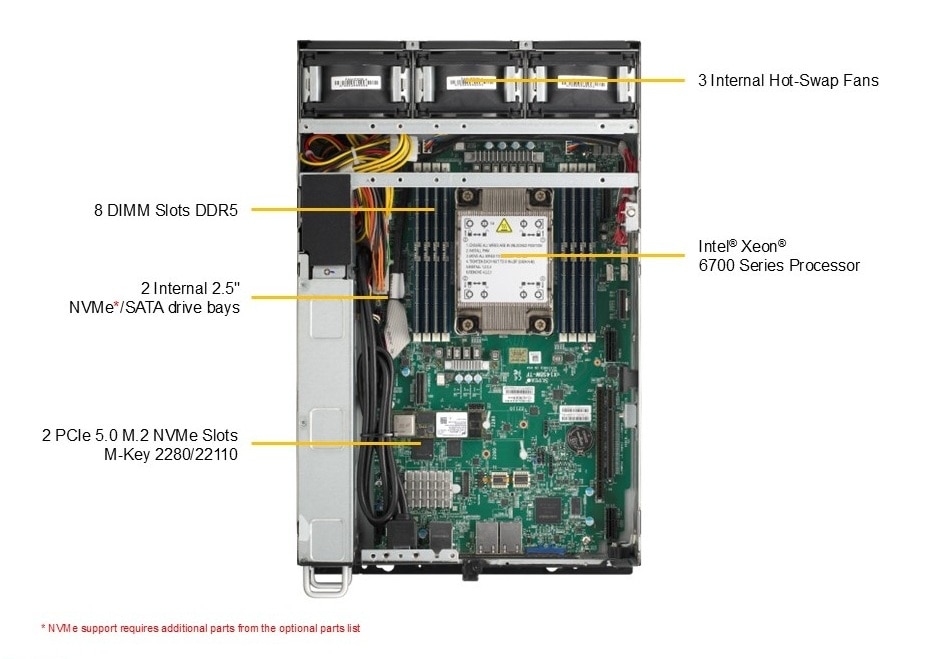

This system delivers robust performance at the edge with a single Intel® Xeon® 6700/6500 series processor, supporting up to 300W TDP with air cooling. With up to 8 DIMMs supporting 2TB of DDR5-6400MT/s ECC RDIMM, it effortlessly handles memory-intensive applications like Machine Learning (ML) and Medical Expert Systems. Its three PCIe 5.0 x16 FHFL slots enable the integration of multiple single-width or a double-width GPU for today's demanding AI applications.
High-Speed Connectivity and Flexible Storage

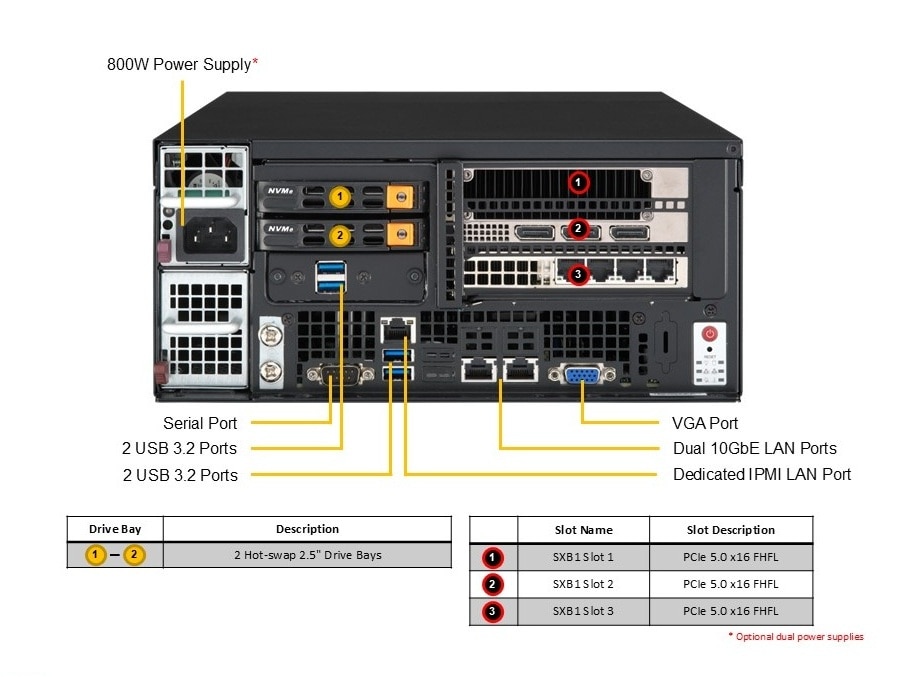

The SYS-E403-14B-FRN2T ensures rapid data transfer with two 10GBASE-T RJ45 ports and a dedicated 1GbE RJ45 port for IPMI. Storage flexibility is paramount, featuring two front hot-swap 2.5" NVMe bays, two internal fixed 2.5" SATA drive bays, and 2 NVMe M.2 slots, allowing VROC RAID capability. This robust storage array, combined with an 800W redundant Platinum Level power supply, ensures reliability for critical applications like Smart Retail and uCPE.
Key Features
- Single Intel® Xeon® 6700/6500 series processor
- Up to 2TB DDR5-6400MT/s RDIMM
- 3x PCIe 5.0 x16 FHFL slots
- Supports NVIDIA PCIe: RTX 4000 Ada Generation, RTX 6000 Ada Generation, L40S, L4, A2, A10
- Dual 10GBASE-T + 1GbE LAN ports
- Up to 2 hot-swap 2.5" NVMe + 2 internal fixed 2.5" SATA drive bays
- Up to 2 M.2 NVME slots with RAID capability
- 800W Redundant Platinum Power Supply
- Compact, fan-based chassis wall-mountable, or over desktop design
| System Starting Price | €2,530.16 |
|---|---|
| CPU | Intel® Xeon® 6 Processors with E-cores, Intel® Xeon® 6 Processors with P-cores |
