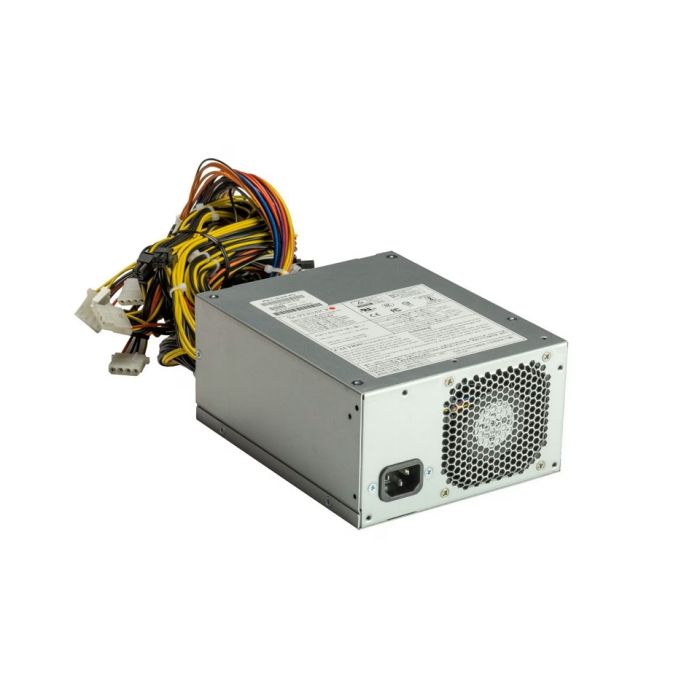

Supermicro 1000/1200W Multi-Output PS2 Platinum Level Power Supply (PWS-1K26P-PQ)
- Optimized for Workstations and Desktop Applications
- PMbus 1.2 Support for Remote Management
- 80 Plus Platinum Efficiency
- 1000W Low-Line and 1200W High-Line Output Power at 92% Efficiency
- 17ms Hold Up Time
- Semi-Modular Cable Output
- Supermicro Certified
IS THIS VALIDATED FOR MY SYSTEM OR MOTHERBOARD?
•System: Enter a server part number (e.g. SYS-1027B-MTF)
•Motherboard: Enter a motherboard part number (e.g. MBD-X10DRi)
Funzioni avanzate per prestazioni ottimali
Supermicro PWS-1K26P-PQ è un alimentatore ad alta efficienza progettato per fornire un'alimentazione affidabile ed efficiente ai sistemi ad alte prestazioni. Con una potenza di uscita low-line di 1000 W e una potenza di uscita high-line di 1200 W, è in grado di gestire con facilità carichi di lavoro impegnativi.
PWS-1K26P-PQ è dotato di correzione attiva del fattore di potenza (PFC) per una migliore qualità dell'alimentazione e un consumo energetico ridotto. La ventola silenziosa garantisce un'interruzione minima del rumore, anche sotto carichi pesanti. Il connettore sul bordo della scheda consente una perfetta integrazione con i sistemi Supermicro 1U compatibili.
Funzionamento affidabile e sicuro
Costruito pensando alla sicurezza, PWS-1K26P-PQ include circuiti di protezione avanzati per salvaguardare il sistema da sovratensioni, sovracorrenti e cortocircuiti. Inoltre, aderisce agli standard RoHS, promuovendo la sostenibilità ambientale.
| Total Power Output | 1000W / 1200W |
|---|---|
| Type | Single |
| Type of Power Supply | Power Supply |
| Form Factor | Tower |
| Dimension (W x H x L) | 150 x 86 x 185mm |
| +5V | 20A |
| +12V | 83A (1000W) / 99A (1200W) |
| +3.3V | 20A |
| 5V Standby | 3A |
| Input Voltage Range | 100-114.9Vac: 1000W / 114.9-240Vac: 1200W |
| Input Frequency Range | 50-60Hz |
| Input Current Range | 100-240Vac: 12.5 - 8A |
| Output Type | 24Pin ATX Cable Output |
| 8Pin / 4Pin (12V) Connector | 24Pin / 8Pin /4Pin /4Pin Peripheral / SATA |
| Voltage / Current | Yes |
| Energy Efficiency | 92%+ |
| 80 Plus Certification | 80 Plus Platinum |
| Warranty | 1 year warranty |
| Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
|
