Supermicro 1U IOT/Embedded System (SYS-5019A-FTN4)

Be the first to review this product
  • Key Features/Applications: Network Security Appliance, Edge Computing Server, Virtualization Server
  • CPU: Intel® Atom® Processor C3758 - 8 Core
  • Chassis: Mini 1U
  • Drive: 1 3.5" or 4 2.5" Internal Drive Bays
  • RAM: 4 DDR4 DIMM Slots
  • Network Ports: 4 1GbE LAN
  • Ships Within 3-5 Business Days

Buy More, Save More
Request quote for volume discount

In stock

SKU
SYS-5019A-FTN4
Share on Facebook Share on Twitter
Email
main product photo
*Actual product may vary slightly from photo shown

* Required Fields

5019A-FTN4-Back-Description

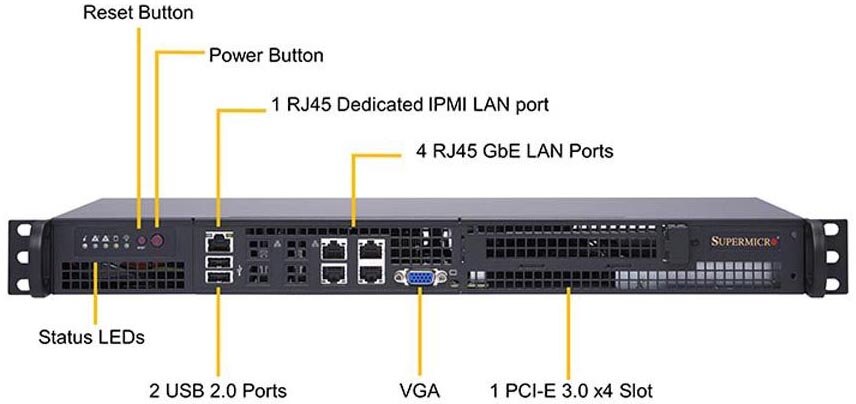

The SYS-5019A-FTN4 is a 1U mini embedded server optimized for applications like network security appliance, edge computing server, and virtualiziation server.  This particular embedded server has front I/O network options for you to use the onboard 4 1GbE lan with options of adding an additional AOC to enable more network ports. To cool down this 1U server includes 2 40mm cooling fan with an option of adding one more.  This compact 1U mini server measures in at only 9.8" (D) x 17.2" (W) x 1.7" (H) weighing in at slightly over 12lbs.

SYS-5019A-FTN4 includes a embedded Intel® Atom® 8-core processor C3758 supporting up to 256GB ECC RDIMM DDR4 memory. Despite its size, this server has an option to enable either 1 3.5" internal drive bay or 4 2.5" internal drive bays. Lastly, this system supports 1 PCI-E 3.0 x4 slot, 1 VGA port, 2 USB 2.0 ports, and 1 RJ45 dedicated IPMI LAN port.
The SYS-5019A-FTN4 dual-core system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.
More Information
Max Number of CPU1
Specification
Proccessor Support 7th Generation Intel® Core™ i7-7600U Processor
Key Applications IoT Edge Computing
Kiosk, Interactive information system
Environmental Monitor
Outstanding Features Core i Fanless Compact Ruggedized Box PC
1 HDMI and 1 Display Port
1 USB3.1, 2 USB 3.0, 4 USB 2.0
4 COM (RS-232/422/485), 1 DIO via DB9
2 Gigabit Ethernet Ports
TPM2.0 onboard
Serverboard SUPER® X11SSN-H-WOHS
Chipset System on Chip
System Memory (Max.) Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Expansion Slots 1 Full size Mini-PCIe; 1 M.2 2280 B-Key
Onboard Strorage Controller 1 M.2 2280 B-Key for SATA SSD
Connectivity Dual LAN with Intel®PHY I219LM, 1 USB3.1, 2 USB3.0, 4 USB2.0, 4 COM (RS-232/422/485), 1 DIO via DB9, TPM2.0 onboard
VGA/Audio 1 DisplayPort, 1 HDMI
Management AMT, SuperDoctor® 5, vPro, Watchdog
Drive Bays N/A
Peripheral Bays N/A
Power Supply Lockable 12V DC 60W power adapter
Cooling Systen Fanless
Form Factor 195 x 44 x 151mm (7.68" x 1.73" x 5.94")
Title Format Date
Server Manual PDF N/A
OS Certification Matrix Link N/A
Drivers & Utilities
Link N/A
BIOS
Link N/A
