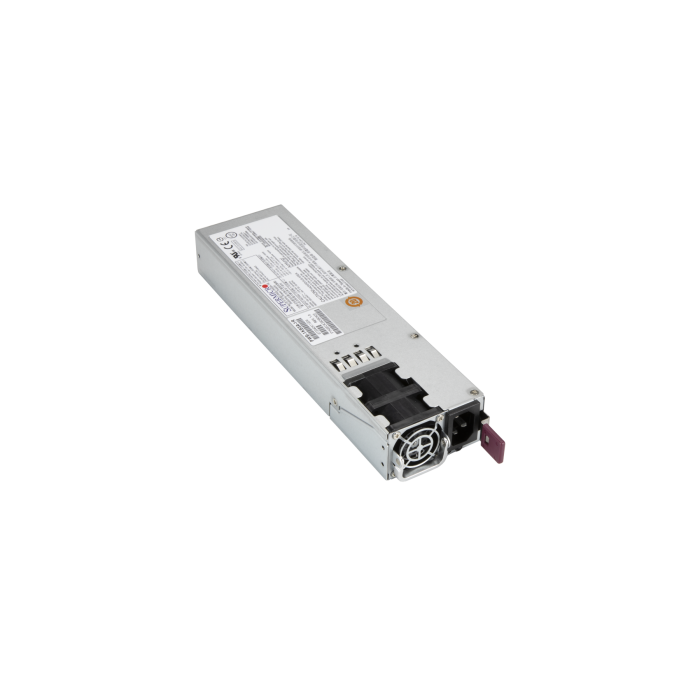

Supermicro 1U 1600W Redundant Power Supply (PWS-1K63A-1R)

  • PMBus 1.2 Support for Remote Management
  • Hot Swappable, N+1
  • 80 Plus Titanium
  • Supermicro Certified
FREE SHIPPING
Out of stock
This item is out of stock but we may still be able to fulfill your order. Contact Us for more details!
SKU
PWS-1K63A-1R
Notify me when this product is in stock

IS THIS VALIDATED FOR MY SYSTEM OR MOTHERBOARD?

The Supermicro PWS-1K63A-1R an 80 Plus Titanium power supply capable of supplying 1600W output power greater than 96% efficiency. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 400,000 hours. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

More Information
Total Power Output1600W
TypeRedundant
Type of Power SupplyPower Supply
Form Factor1U
Dimension (W x H x L)73.5 x 40 x 265 mm
+5V -
+12V83.3A (100-127Vac) 133.3A (200-240Vac)
+3.3V-
5V Standby-
+12V Standby3.5A
Input Voltage Range1000W: 100-127Vac 1600W: 200-240Vac 1600W: 200-240Vdc (for CQC only)
Input Frequency Range50-60Hz
Input Current Range100-127Vac / 12 – 9A 200-240Vac / 9 – 7.5A 240Vdc / 9A (CQC only
Output TypeGold Finger
8Pin / 4Pin (12V) Connector-
Inlet ConnectorIEC 60320 C14
PFCYes, PMBus 1.2 support
Energy Efficiency96% Peak
80 Plus Certification80 Plus Titanium
Warranty1 year warranty
Product Environmental ComplianceRoHS and REACH compliant, details available upon request
Title Format Date
PWS-1K63A-1R Spec Sheet PDF Jan 2023
