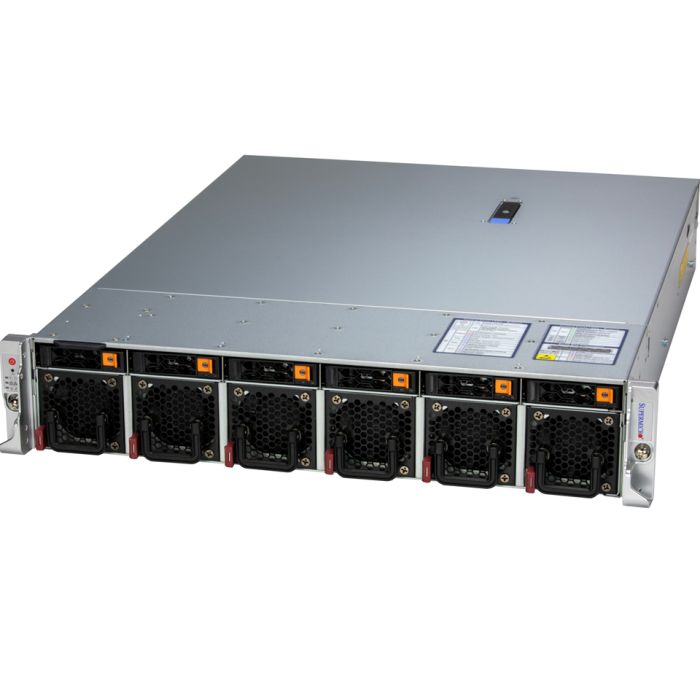

Supermicro 2U Hyper-E SuperServer (SYS-222HE-TN)

The Supermicro SYS-222HE-TN redefines high-density computing in a compact 2U short-depth rackmount form factor, delivering exceptional performance for AI inference, machine learning, virtualization, and 5G edge deployments. Featuring dual-socket 2U server supports Intel® Xeon® 6700/6500 series processors with P-cores (up to 86C/172T, 336MB cache) or 6700 series E-cores (up to 144C/144T, 108MB cache), handling up to 330W TDP air. Ideal for enterprise data centers and cloud environments, the SYS-222HE-TN maximizes throughput while minimizing footprint—perfect for organizations scaling AI servers or software-defined storage solutions.

Memory prowess sets it apart with 32 DIMM slots across 12 channels, supporting up to 8TB DDR5-5200 ECC RDIMM (2DPC) or 4TB at 6400MT/s (1DPC) at 1.1V—ensuring seamless handling of massive datasets in deep learning workflows. Expansion shines with flexible PCIe 5.0 options: up to 3 double-width or 4 single-width GPUs/accelerators via 3x x16 FH/10.5"L slots, plus 1x FHHL x16 and 2x AIOM OCP NIC 3.0 slots for networking. Alternative configs offer 6x x8 (in x16) FH/10.5"L + 2x x8 FHHL slots. CXL 2.0 support for up to 4 devices future-proofs hybrid CPU-GPU interconnects, accelerating HPC servers and real-time analytics.

Storage flexibility includes 6 front hot-swap 2.5" NVMe/SAS/SATA bays (expandable to 8 or 10 with rear bays), 2x internal M.2 PCIe 5.0 x2 NVMe slots (2280/22110/25110), and Intel® VROC RAID 0/1/5/10. Networking via AIOM slots enables customizable high-speed connectivity, complemented by a dedicated 1GbE BMC LAN for remote management.

SYS-222HE-TN housed in a 2U chassis (3.5" H x 17.2" W x 22.6" D, net weight 34.4 lbs), it fits tight spaces with intuitive front-panel LEDs for HDD/LAN activity, power, and UID button. Cooling ensures reliability with 6 counter-rotating 60mm fans, 4 air shrouds, and optional direct-to-chip liquid cooling—plus PC health monitoring for voltages, temps, and fan speeds. Power redundancy via 2x 2000W Titanium Level (96%) PSUs (1+1) supports 100-240Vac inputs, delivering up to 166A at +12V for sustained peak loads.

Security is enterprise-grade: TPM 2.0, NIST 800-193 Silicon Root of Trust, secure boot, firmware signing, and runtime BMC protections safeguard sensitive AI models and data. Operating in 10-35°C and 8-90% humidity (non-condensing), it's built for global resilience.

Tailored for 5G edge computing, cloud virtualization, and ML inference, the SYS-222HE-TN powers breakthroughs in telecom cores and hyperscale storage. Leverage Supermicro’s JumpStart for free remote SSH/VNC/IPMI access to benchmark on Xeon and GPU configs. Compact yet colossal, the Supermicro 2U dual-socket server blends density, efficiency, and scalability—elevating your infrastructure for tomorrow’s demands.
