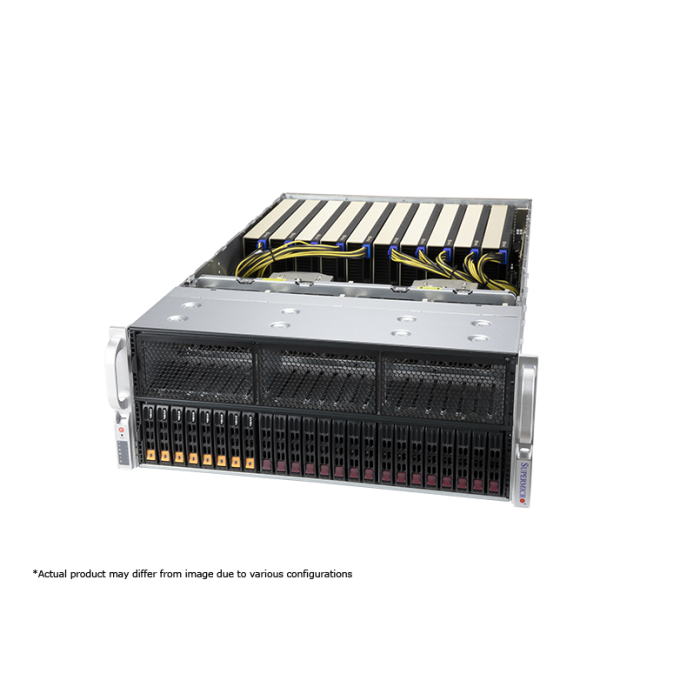

Supermicro SYS-420GP-TNR Dual Xeon Scalable 4U GPU SuperServer

  • Key Features/Applications: High-Performance Computing, Rendering, VDI, AI/Deep Learning Training
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors
  • Chassis: 4U / 1 Node
  • Drive: 24 2.5" Hot-Swap (8 NVMe / 8 SATA / 8 SAS) Drive Bays
  • RAM: 32 DDR4 DIMM Slots
  • GPU: Up to 10 Double-Wide GPUs
  • Network Ports: 2 1GbE Ports
  • Ships Within 3-5 Business Days

In stock

*Actual product may vary slightly from photo shown

* Required Fields

SYS-740GP-TNRT Side View
Supermicro’s X12 SYS-420GP-TNR GPU SuperServer is designed and optimized for the most demanding High-Performance Computing, AI/Deep Learning, Inference, Virtual Desktop Infrastructure (VDI), Virtual Workstation (vWS), and Graphical workloads and applications.


The Supermicro SYS-420GP-TNR is the ultimate solution with maximum performance and flexibility to execute intensive AI/Deep learning and HPC applications. Powered by dual 3rd Gen Intel® Xeon® Scalable Processors with up to 40 cores/80 threads along with 32 DDR4 DIMM slots to tackle the most complex tasks and workloads.

Superior Expandability

A total of twelve PCI-E X16 Slots allow for flexible and optimized configurations with support for up to TEN double-wide GPUs. Two onboard 1GbE LAN ports, one dedicated IPMI port and optional AIOM/OCP 3.0 support will keep you seamlessly connected no matter where you are.

Storage for Data-Intensive Applications

Equipped with bigger, faster storage options featuring 24 hot-swap 2.5" NVMe/SATA/SAS drive bays providing superior storage capabilities to easily execute intensive data processing and workloads. The SYS-420GP-TNR SuperServer is powered by four 2000W redundant titanium power supplies, giving you one of the most reliable and efficient GPU servers available today.

Up to 10 Double-Wide Full-Length GPUs

The Supermicro SYS-420GP-TNR SuperServer can be configured and optimized for specific or target workloads and applications by integrating up to TEN double-wide full-length GPUs.

More Information
CPU3rd Gen. Xeon® Processor
Max Number of CPU2
