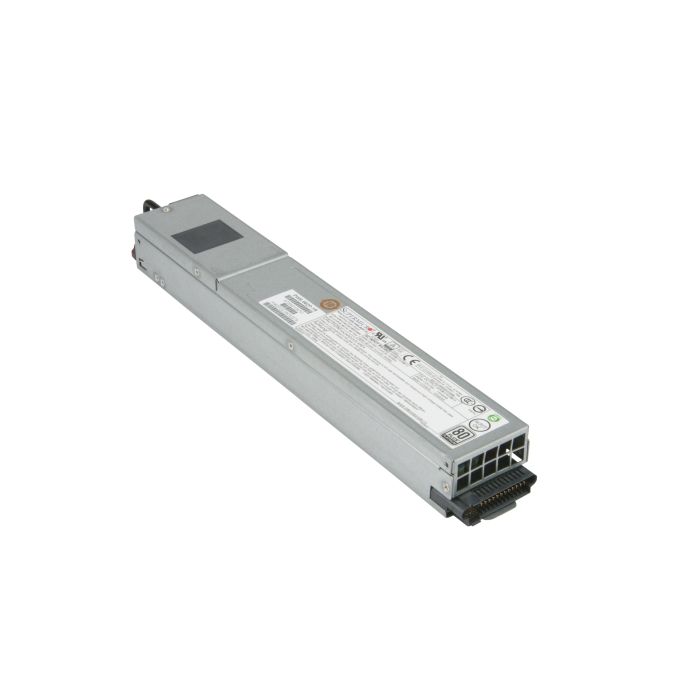

Supermicro 850W/980W 1U Redundant Power Supply (PWS-982P-1R)
- PMBus 1.2 Support for Remote Management
- Flexible Redundancy Control
- 80 Plus Platinum
- Supermicro Certified
FREE SHIPPING
Buy More, Save More
In stock
SKU
PWS-982P-1R
IS THIS VALIDATED FOR MY SYSTEM OR MOTHERBOARD?
The Supermicro PWS-982P-1R is an 80 Plus Platinum power supply capable of supplying 850W low-line and 980W high-line output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Total Power Output | 850W / 980W |
---|---|
Type | Redundant |
Type of Power Supply | Power Supply |
Form Factor | 1U |
Dimension (W x H x L) | 54.5 x 40 x 320 mm |
+5V | N/A |
+12V | 70A / 81A |
+3.3V | N/A |
5V Standby | 4A |
Input Voltage Range | 100-140V / 180-240V |
Input Frequency Range | 50-60Hz |
Input Current Range | 11.5-6.5A / 6.5-4.5A |
Output Type | Backplane Connector |
8Pin / 4Pin (12V) Connector | N/A |
PFC | Yes |
Voltage / Current | Yes |
Energy Efficiency | 94% Peak |
80 Plus Certification | 80 Plus Platinum |
Validated Systems | SYS-6038R-TXR, SYS-6039P-TXRT |
Warranty | 1 year warranty |
Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
|
