Supermicro IOT/Embedded System (SYS-E302-12D-8C)

Be the first to review this product

Key Features/Applications: Network Security Appliance, Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), NFV Edge Computing Server, Virtualization Server, IoT Edge Computing/Gateway
CPU: Single Intel® Xeon® processor D-1736NT (8-Cores)
Chassis: Compact Form Factor
Drive: 1 2.5" Drive Bay
RAM: 4 DDR4 DIMM Slots
Network Ports: 2 25GbE SFP28 Ports + 4 1GbE LAN Ports + 1 Dedicated IPMI LAN

Buy More, Save More

Request quote for volume discount

In stock

SKU

SYS-E302-12D-8C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

*Actual product may vary slightly from photo shown

Description

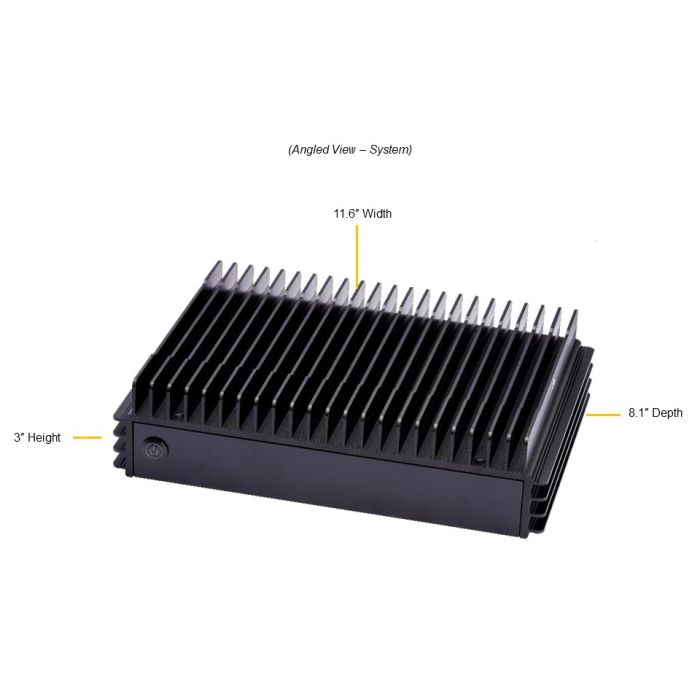

Despite its compact size, SYS-E302-12D is designed to handle edge server computing, and mission critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 11.6" x 3" x 8.1 inches and weighing slightly over 8 lbs. This particular IoT/embedded system is optimized for network security appliance, software defined WAN (SD-WAN), Edge computing server, Artificial Intelligence, and IoT edge computing / gateway.

SYS-E302-12D has Intel® Xeon® processor D-1736NT (8-Core) embedded in the system, up to 256GB DDR4 RDIMM or 128GB DDR4 UDIMM in 4 DIMM slots, and supports 1x 2.5" drive bay and 1x M.2 M-key. In addition, this system comes with 1 Dedicated IPMI, dual 25GbE LAN ports and 4x 1GbE, 1 VGA port, and 2 USB 3.0 ports.

The SYS-E302-12D 8-cores system is perfect for those looking for an edge server, high computing needs, and space-constrained system.
