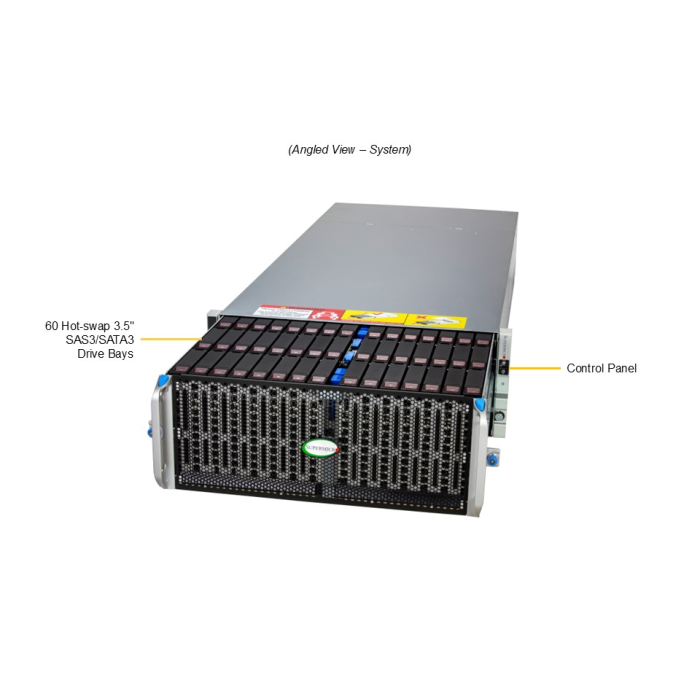

Supermicro 4U SuperStorage Server (SSG-542B-E1CR60)

Unleash unparalleled storage capacity with the Supermicro SuperServer SSG-542B-E1CR60, a 4U top-loading storage server optimized for high-density storage, cloud computing, virtualization, and enterprise applications. Powered by a single Intel® Xeon® 6700/6500 series processor, it delivers robust performance for data-intensive workloads.

Featuring 16 DDR5 DIMM slots supporting up to 2TB ECC RDIMM at 6400MT/s (1DPC) or 5200MT/s (2DPC), this server ensures seamless multitasking. Storage excels with 60 top-loading hot-swap 3.5"/2.5" SAS/SATA bays, with optional configurations for 4 rear or 2 internal 2.5" PCIe 4.0/5.0 NVMe bays. 2 M.2 PCIe 4.0 NVMe slots and RAID 0/1 support enhance data flexibility.

Expansion includes 1 PCIe 5.0 x8 and 3 PCIe 5.0 x16 HHHL slots for add-on cards. A dedicated 1GbE BMC LAN port ensures reliable connectivity, while IPMI 2.0 with KVM-over-LAN, SuperCloud Composer®, and Supermicro Server Manager streamline remote management. Security is robust with TPM 2.0, Silicon Root of Trust, secure boot, and NIST 800-193 compliance.

Ideal for massive storage needs, the SSG-542B-E1CR60 combines Supermicro’s reliability with scalable performance, making it a top choice for enterprises seeking efficiency and power.
