Supermicro 5U GPU SuperServer (SYS-522GA-NRT)

SuperServer SYS-522GA-NRT: Ultimate 5U GPU Server for AI and High-Performance Computing

Revolutionize your data center with the Supermicro SuperServer SYS-522GA-NRT, a versatile 5U rackmount GPU system optimized for high-performance computing (HPC), AI/deep learning training, VDI, media streaming, cloud gaming, animation, 3D rendering, and diagnostic imaging. This dual-socket Intel-based server supports up to 10 single-width GPUs or configurations for quad/triple/double-width cards, featuring dual-root PCIe 5.0 architecture for superior scalability and thermal efficiency.

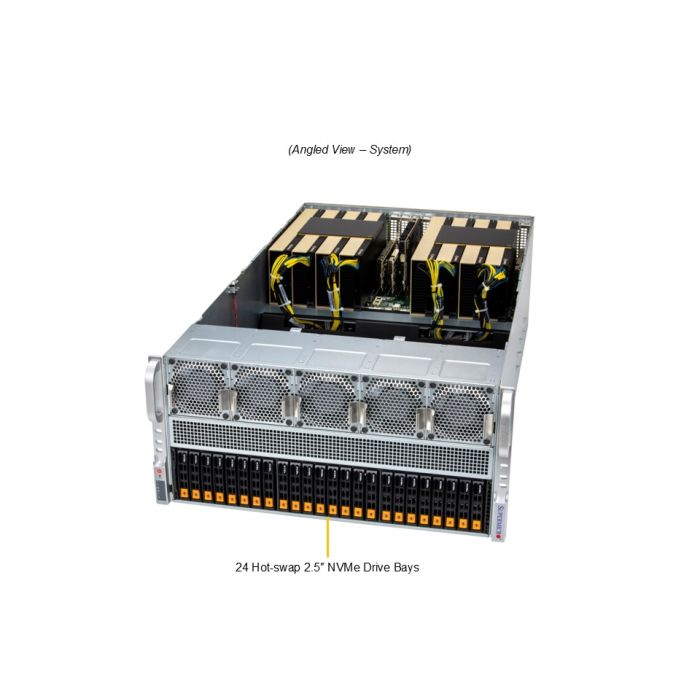

At the heart of the SYS-522GA-NRT are dual Intel® Xeon® 6900 series processors with P-cores, delivering up to 128 cores and 256 threads per CPU, with support for 500W TDP air-cooled operation. Memory expands to 6TB of 6400MT/s ECC DDR5 RDIMM or 8800MT/s MRDIMM across 24 slots, ideal for handling vast datasets in AI and visualization workflows. Storage is expansive with 24 front hot-swap 2.5" U.2/U.3 PCIe 5.0 NVMe bays and 2 M.2 PCIe 5.0 x4 slots, ensuring lightning-fast data throughput. Expansion options include 13 PCIe 5.0 x16 FHFL slots and optional NVIDIA NVLink Bridge for high-speed GPU interconnects.

Designed for mission-critical reliability, this AI GPU server incorporates 10 heavy-duty PWM fans with optimal speed control, advanced thermal monitoring, and an air shroud for efficient cooling. Security features TPM 2.0, Secure Boot, NIST 800-193 compliant Silicon Root of Trust, cryptographically signed firmware, and system lockdown to protect sensitive environments. The compact 5U chassis measures 8.75" H x 17.2" W x 31" D, with a black front and silver body for seamless rack integration.

Empower your AI and HPC initiatives with the SYS-522GA-NRT—Supermicro's blend of power and innovation for next-gen computing. Ideal for enterprises scaling GPU infrastructure.
