Supermicro SYS-112B-FWT 1U Rackmount X14 UP IOT System

Compact Edge Power for 5G & AI

The SYS-112B-FWT is a compact 1U Edge server with a single Intel Xeon 6 processor and support for 1 GPU, ideal for Flex-RAN, Open-RAN, and AI on Edge applications.

Supermicro SYS-112B-FWT: Accelerated Power for RAN and Edge AI

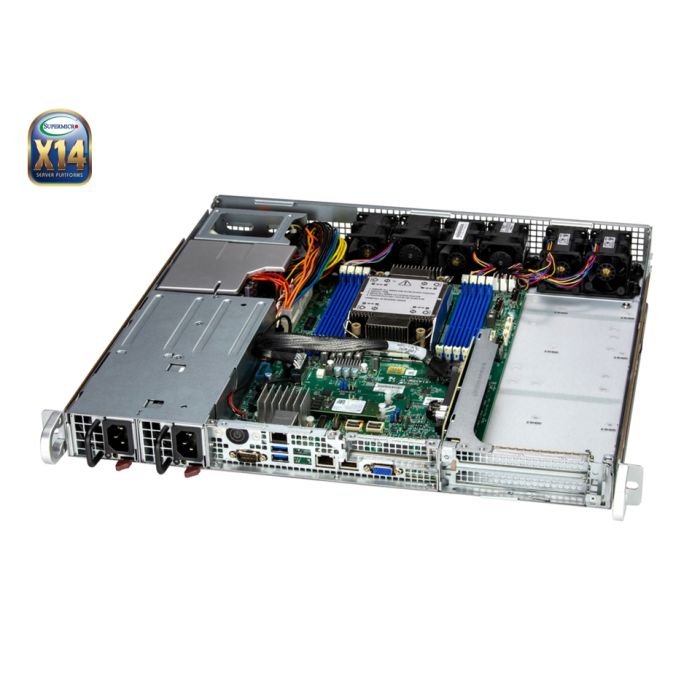

The Supermicro SYS-112B-FWT is a highly compact 1U Edge system expertly designed for critical distributed workloads such as Multi-Access Edge Computing (MEC), Flex-RAN, Open-RAN vBBU, and DU of 5G Application. Powered by a single Intel® Xeon® 6700/6500 series processor, it offers exceptional computing efficiency. The server supports up to 1TB of ECC DDR5-6400 RDIMM memory and features two internal fixed 2.5" NVMe/SATA drive bays for fast, reliable data access right at the source.

Unique Form Factor and Flexible Expansion

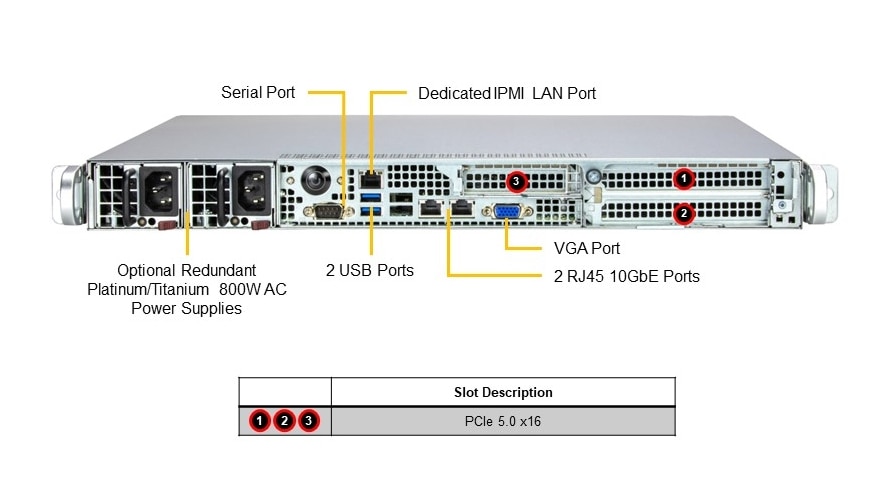

This unique 1U compact edge server maintains a small footprint while maximizing I/O flexibility. It supports three expansion slots (2x FHFL PCIe 5.0 x16 and 1x LP PCIe 5.0 x16) in its small chassis, allowing for the integration of up to 1 GPU for demanding tasks like Artificial Intelligence (AI) on Edge and Satellite Communication. The front-accessible design, including hot-plug 800W redundant Titanium Level power supplies, ensures effortless serviceability and maintenance.

Optimized Connectivity and Reliability

The SYS-112B-FWT ensures seamless data throughput with 2x 10GbE RJ45 LAN Ports, providing the high-bandwidth connectivity essential for 5G applications. Its redundant 800W Titanium Level power supplies guarantee continuous operation and energy efficiency, minimizing downtime and supporting this highly compact and affordable system. This makes it an ideal choice for businesses seeking a powerful, space-saving IoT SuperServer solution.

Key Features

• Single Intel® Xeon® 6700/6500 series processor
• Up to 1TB DDR5-6400 ECC RDIMM
• 3x PCIe 5.0 slots (supporting up to 1 GPU)
• 2x 10GbE RJ45 LAN Ports
• 2x 800W Redundant Titanium Power Supplies
• Compact 1U Edge form factor
