Supermicro SYS-212B-FN4TP 2U Rackmount X14 UP IOT System

Compact 2U Edge Server for 5G & AI

The SYS-212B-FN4TP is a 2U short-depth, front I/O server with Intel Xeon 6 processors, quad 10G networking, and NEBS-Level 3 compliance for 5G Edge and AI Inference.

Supermicro SYS-212B-FN4TP: The Compact 5G & AI Edge Solution

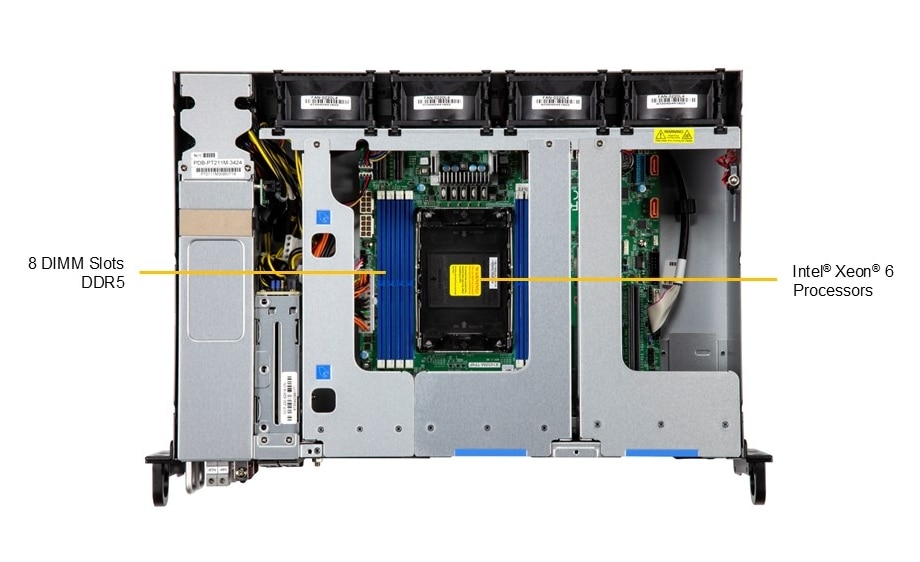

The Supermicro SYS-212B-FN4TP is a robust 2U short-depth server with convenient Front I/O, expertly engineered for demanding 5G Core and Edge applications and Network Function Virtualization (NFV). This system is designed with NEBS-Level 3 compliance for high reliability in rugged environments. Powered by a single Intel® Xeon® 6700/6500 series processor, it supports high-speed DDR5-6400MT/s or DDR5-8000MT/s MRDIMM memory across 8 DIMM slots, ensuring optimal performance for AI Inference and Machine Learning workloads.

Flexible Expansion and Quad 10G Connectivity

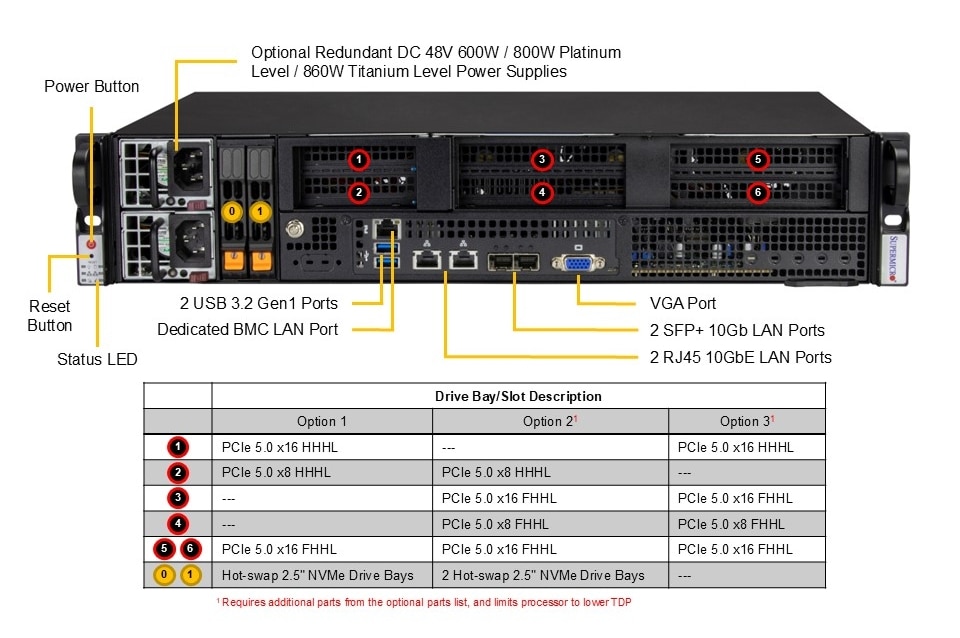

Despite its compact size (only 11.8 inches deep), the SYS-212B-FN4TP offers superior expandability with up to 4 PCIe 5.0 x16 slots (3 FHHL + 1 HHHL) and an additional PCIe 5.0 x8, ideal for Accelerator Add-On-Cards. Connectivity is robust with an embedded quad 10 Gigabit network solution, featuring 2x 10GbE RJ45 and 2x 10G SFP+ ports. This high-bandwidth I/O is crucial for fast data throughput in Cloud Computing and NFV scenarios.

Optimized Storage and Cost-Effective Operation

Storage flexibility includes optional 2 front hot-swap 2.5" NVMe drive bays (PCIe 5.0 ready) and 2 internal M.2 PCIe 5.0 NVMe slots for swift boot and caching. The SYS-212B-FN4TP, especially when configured with an E-core processor, is a cost-effective, space-constrained solution that is perfect for those requiring embedded QAT support for enhanced data processing and security at the edge.

Key Features

• Single Intel® Xeon® 6 processors
• NEBS-Level 3 compliant
• Quad 10G Networking (2x 10GbE RJ45, 2x 10G SFP+)
• Up to 4 PCIe 5.0 x16 slots for acceleration
• Optional 2 front hot-swap 2.5" NVMe bays
• Redundant AC/DC Power Supply options
