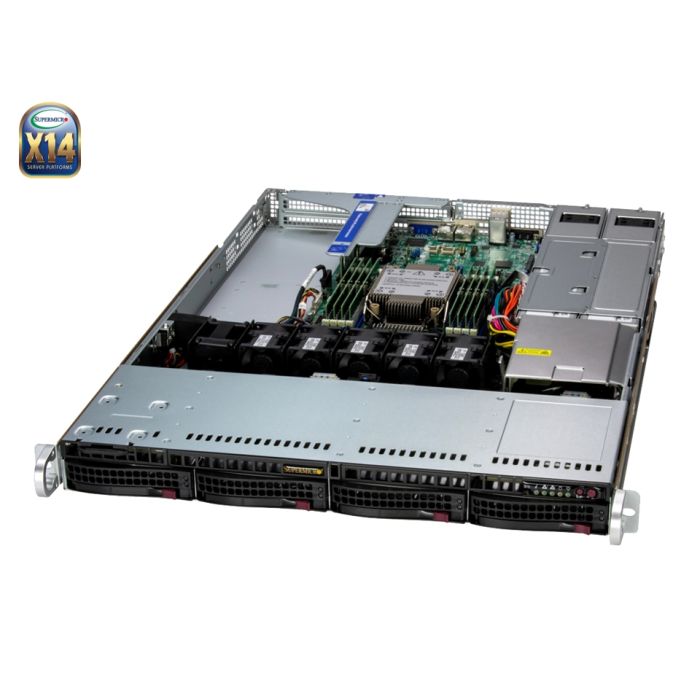

Supermicro SYS-512B-WR 1U Rackmount X14 UP WIO SuperServer

1U WIO Server for Enterprise

The SYS-512B-WR is a 1U WIO server with a Single Intel Xeon 6 processor, 4x 3.5" hot-swap bays, and 3x PCIe 5.0 slots for Cloud Computing and Entry GPU workloads.

Supermicro SYS-512B-WR: Versatile Performance for the Next Generation

The Supermicro SYS-512B-WR is a highly versatile 1U Ultra-Performance WIO (Wide I/O) server, designed to provide flexible I/O configurations in a cost-effective architecture. Ideal for General Purpose Computing, Cloud Computing, and Web/Hosting Applications, this server is powered by a Single Intel® Xeon® 6 Processor, ensuring exceptional efficiency and power for demanding tasks like Virtualization and Database/Storage solutions.

Next-Gen Expansion and High-Speed Storage

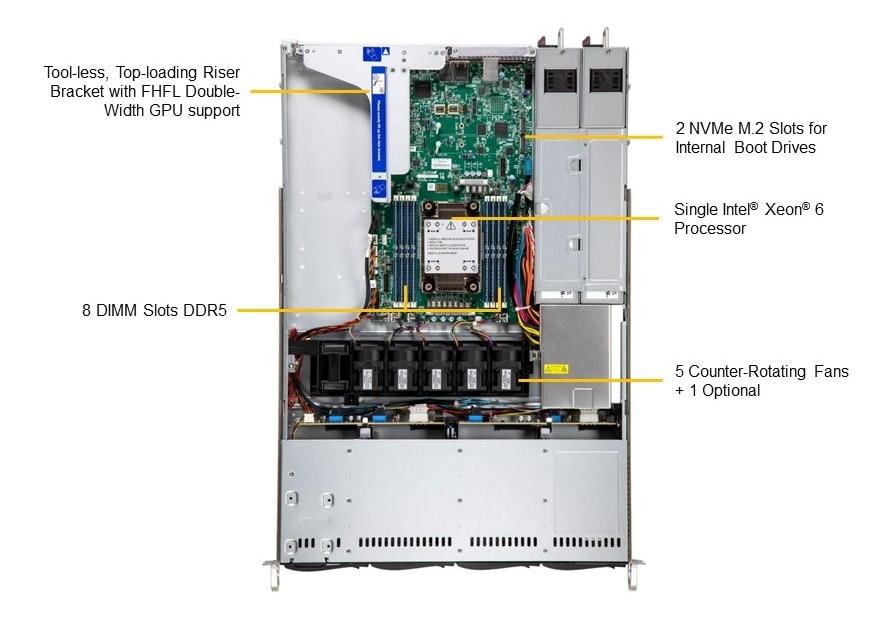

This compact powerhouse features a tool-less, top-loading riser design supporting 3 PCIe 5.0 expansion slots (2x FHFL + 1x LP). This capability makes it an excellent choice for an Entry GPU Server, supporting up to one double-width GPU. Storage flexibility is paramount with 4 hot-swap 3.5" drive bays that natively support SATA and can be configured for PCIe 5.0 NVMe or SAS, making it a robust Storage Headnode solution.

Massive Memory and Enterprise Reliability

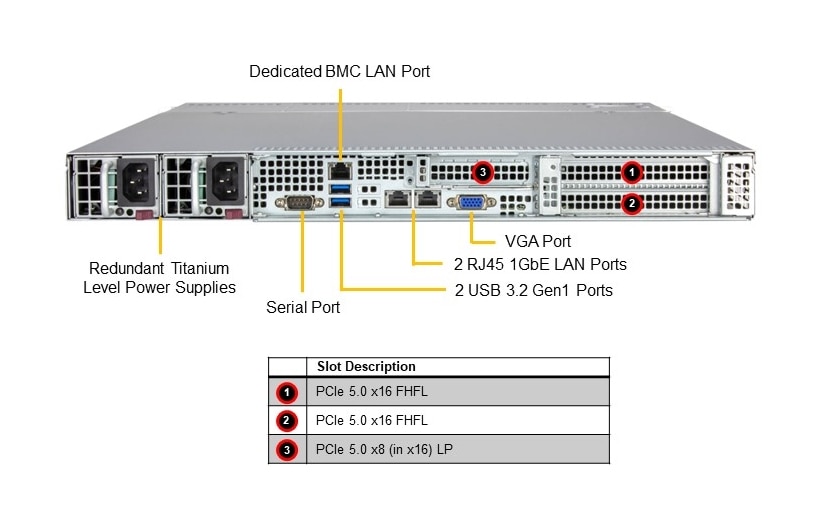

Boost your productivity with 8 DIMM slots supporting up to 2TB of 6400MT/s ECC DDR5 RDIMM memory, ensuring seamless data processing for AI inference and large enterprise applications. Connectivity is streamlined with dual 1GbE RJ45 LAN ports and a dedicated IPMI port for remote management. Security is fortified with onboard TPM 2.0 and Silicon Root of Trust, providing enterprise-grade reliability for your critical infrastructure.

Key Features

• Flexible I/O configurations in a cost-effective architecture
• Single Intel® Xeon® 6 processor
• 4 Native SATA drives supported, with option PCIe 5.0 NVMe and SAS
• 3 PCIe 5.0 expansion slots (2x FHFL + 1x LP)
• Up to 2TB DDR5-6400 ECC RDIMM
• Tool-less top-loading riser design
• Trusted Platform Module (TPM) 2.0 onboard
• Silicon Root of Trust (RoT) Compliant
