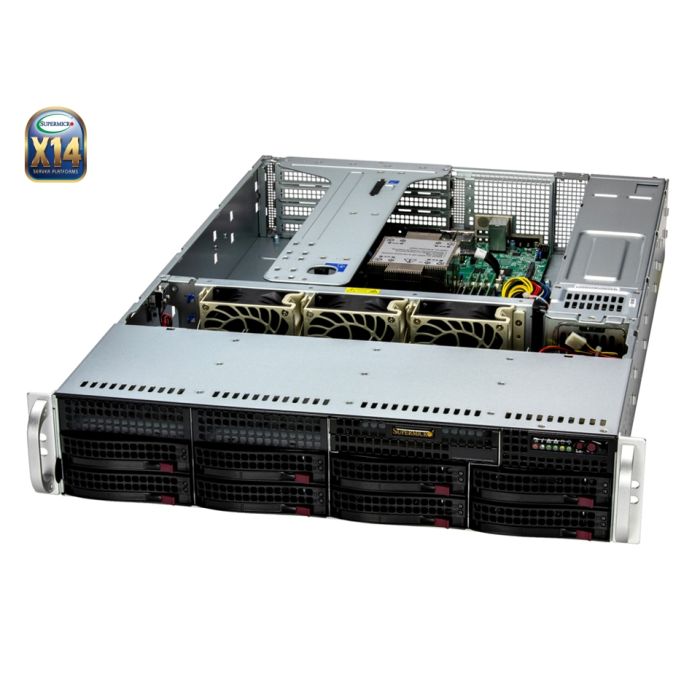

Supermicro SYS-522B-WR 2U Rackmount X14 UP WIO SuperServer
- Key Features/Applications: Networking Appliance, General Purpose Computing, Web Server, Firewall Application, Data Center Optimized, Entry-Level System for SOHO and SMB, Entry GPU Server
- CPU: Single Intel® Xeon® 6700/6500 Series Processors with P-cores or 6700 Series Processors with E-cores, up to 86 Cores (P-cores)/144 Cores (E-cores)
- Chassis: 2U
- Drive: Up to 8x 3.5" Front Hot-Swap SATA Drive Bays (Optional support for 4x 2.5" PCIe 5.0 NVMe/SAS/SATA + 4x 3.5"/2.5" SAS/SATA Drive Bays)
- RAM: Up to 2TB of DDR5 ECC RDIMM in 8 DIMM Slots
- GPU: Up to 1 GPU
- Network Ports: 2x 1GbE RJ45 LAN Ports
- Power Supply: 2x 1000W Redundant (1 + 1) Titanium Level Power Supplies
2U WIO Server for Enterprise
The SYS-522B-WR is a versatile 2U WIO server with a Single Intel Xeon 6 processor, 8x 3.5" hot-swap bays (with optional support for 4 NVMe hybrid), and 5x PCIe 5.0 slots for General Compute and Web Servers.
Supermicro SYS-522B-WR: Optimized Scalability for Enterprise & SMB
The Supermicro SYS-522B-WR is a high-performance 2U Wide I/O (WIO) server engineered for flexibility and cost-effectiveness in enterprises, SOHO, and SMB environments. Powered by a Single Intel® Xeon® 6 Processor, this robust system tackles diverse workloads including General Purpose Computing, Web Server and Firewall Application. Its design maximizes efficiency, making it an ideal, cost-effective Data Center Optimized solution.
Versatile Storage and PCIe 5.0 Expansion
This server delivers unmatched scalability with up to 8 hot-swap 3.5" drive bays that are hybrid-configurable to support up to 4 PCIe 5.0 NVMe drives, providing speed and capacity. The tool-less, top-loading riser design supports up to 5 PCIe 5.0 expansion slots, making the SYS-522B-WR an excellent foundation for an Entry GPU Server or a specialized Networking Appliance.
Reliable Performance and Seamless Connectivity
The system supports up to 2TB of 6400MT/s ECC DDR5 RDIMM across 8 DIMM slots, ensuring rapid data processing for demanding applications. Networking is seamless with dual 1GbE RJ45 LAN ports and a dedicated IPMI port for simplified remote management. Crucially, security is fortified with onboard TPM 2.0 and NIST 800-193-compliant protections, safeguarding your critical cloud and AI workloads.
Key Features
- Flexible I/O configurations in a cost-effective architecture
- Single Intel® Xeon® 6 processor
- 8 Native SATA drives supported, with option for up to 4 PCIe 5.0 NVMe drives or 8 SAS drives
- Up to 5 PCIe 5.0 expansion slots
- Up to 2TB DDR5-6400 ECC RDIMM
- Tool-less top-loading riser design
- Trusted Platform Module (TPM) 2.0 onboard
- Silicon Root of Trust (RoT) Compliant
| System Starting Price | €3,790.18 |
|---|---|
| CPU | Intel® Xeon® 6 Processors with E-cores, Intel® Xeon® 6 Processors with P-cores |
